- N-Series
- Battery pack

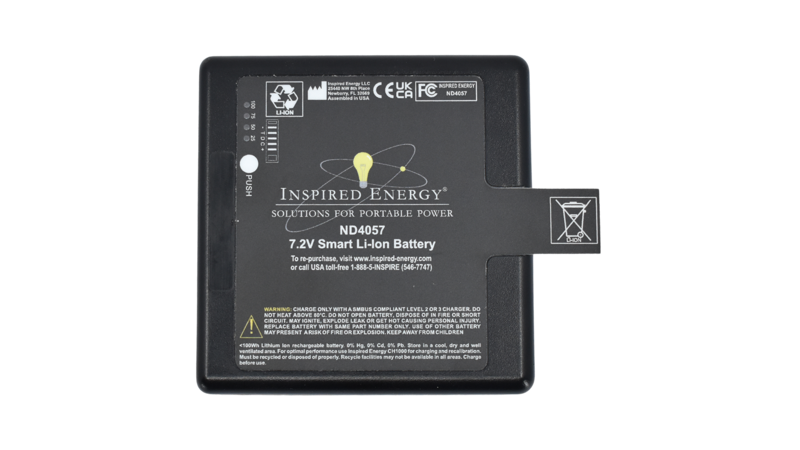

ND4057HD50
7.2 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 1.1
Electrical
| Voltage | 7.2 V |
|---|---|
| Capacity | 10 Ah |
| Energy | 72 Wh |
| Volumetric energy density | 296 Wh per litre |
| Gravimetric energy density | 194 Wh per kg |
| Maximum discharge current | 10 A |
| Power | 50 W |
| Chemistry | Lithium-ion |
| Cells | 4 × 21700 |
| Configuration | 2S2P |
Mechanical
| Dimensions (L × W × H) | 94 × 96 × 27 mm (3.74 × 3.81 × 1.08 in) |
|---|---|
| Weight | 372 g (0.82 lb) |
| Form factor | Square |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +55 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | 5-Pin Standard Connector |
|---|---|
| State-of-charge display | Push button 4-bar LED |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B |
|---|
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Cables
| Part | What it is |
|---|---|
| 629104A1 | 3FT, 5-conductor straight cable for ND405x li-ion smart battery packs. |
Accessories
Compare with its family
Volume pricing available on every part.
 ND4057HD50 This part |  ND4054HD50 Same family |  NB4037HD50 Same family |  ND4054QE50 Same family | |
|---|---|---|---|---|
| Voltage | 7.2 V | 14.4 V (differs) | 7.2 V | 14.4 V (differs) |
| Capacity | 10 Ah | 5 Ah (differs) | 5 Ah (differs) | 5 Ah (differs) |
| Energy | 72 Wh | 72 Wh | 36 Wh (differs) | 72 Wh |
| Max discharge | 10 A | 8 A (differs) | 8 A (differs) | 8 A (differs) |
| Power | 50 W | 80 W (differs) | 40 W (differs) | 80 W (differs) |
| Cells | 4 × 21700 | 4 × 21700 | 2 × 21700 (differs) | 4 × 21700 |
| Configuration | 2S2P | 4S1P (differs) | 2S1P (differs) | 4S1P (differs) |
| Dimensions (mm) | 94 × 96 × 27 | 94.89 × 96.57 × 27.26 (differs) | 94.89 × 53.17 × 27.26 (differs) | 94.89 × 96.57 × 27.26 (differs) |
| Volume (mm³) | 243,648 | 249,798 (differs) | 137,535 (differs) | 249,798 (differs) |
| Weight | 372 g | 372 g | 195 g (differs) | 372 g |
| Gravimetric density | 194 Wh per kg | 194 Wh per kg | 185 Wh per kg (differs) | 194 Wh per kg |
| Discharge temperature | −20 °C to +55 °C | −20 °C to +55 °C | −20 °C to +55 °C | −20 °C to +55 °C |
| SoC display | Push button 4-bar LED | Push button 4-bar LED | Always on 5-Bar LCD (differs) | Push button 4-bar LED |
| Mating connector | 5-Pin Standard Connector | AMP P/N 5787422-1 or 5787446-1 (differs) | AMP P/N 5787422-1 or 5787446-1 (differs) | AMP P/N 5787422-1 or 5787446-1 (differs) |
| Price, qty 1-11 | $167.22 | $167.22 | $130.51 | $169.88 |
This part, ND4057HD50Differs from the ND4057HD50
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
ND4057HD50 Smart Lithium-Ion Battery: The 40xx range of rechargeable smart Li-Ion battery packs are designed for applications where size and runtime may be a consideration.
The ND4057HD50 (2S2P) 7.2V smartbattery incorporates the standard features that designers and engineers have come to rely on for safety and performance, such as SMbus, a pull tab for easy removal and on-pack LED display for relative SOC indication.
The 4057 battery pack can perform at -20°C for low temperature applications, as the low internal impedance enables the cells to deliver good capacity and discharge current. (Note, in low temperature applications, we recommend testing the device at temperature to validate performance).
Features:
- SMbus
- Pull tab for easy removal
- On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.
ND4057HD50 Smart Li-ion battery customization options:
- Custom label
- Custom Firmware
- Additional performance options for OEM applications N-series chargers are recommended for these batteries.
Looking for something with a smaller format?
We recommend the NB4037HD50 smart battery Need additional capacity?
Check out our NH2057QE34 smart battery
