- N-Series
- Battery pack

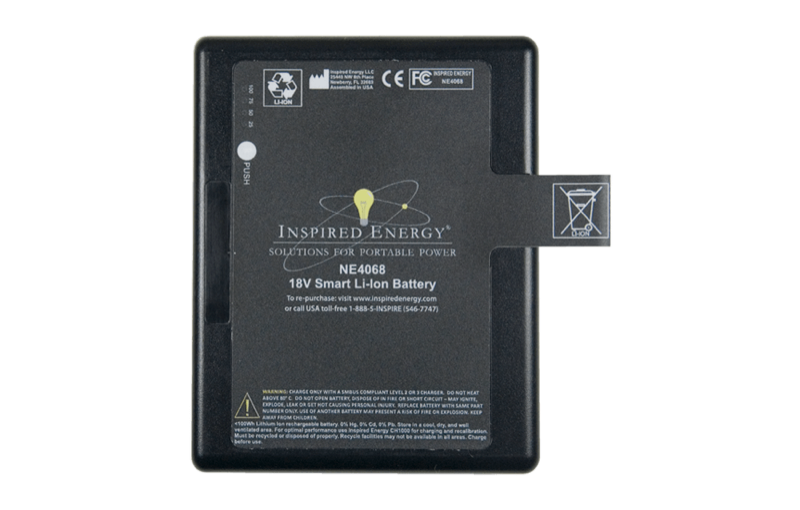

NE4068QE50
18 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 1.0.1
Electrical
| Voltage | 18 V |
|---|---|
| Capacity | 5 Ah |
| Energy | 90 Wh |
| Volumetric energy density | 290 Wh per litre |
| Gravimetric energy density | 195 Wh per kg |
| Maximum discharge current | 8 A |
| Power | 100 W |
| Chemistry | Lithium-ion |
| Cells | 5 × 21700 |
| Configuration | 5S1P |
Mechanical
| Dimensions (L × W × H) | 94.89 × 119.85 × 27.26 mm (3.74 × 4.72 × 1.08 in) |
|---|---|
| Weight | 462 g (1.02 lb) |
| Form factor | Rectangular |
| Device cavity | 27.8mm x 121.4mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +55 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | 5-Pin Standard Connector |
|---|---|
| State-of-charge display | Push button 4-bar LED |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS2, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B, IEC 62133-2 (CB report), TÜV, CAN/CSA C22.2 No. 62133-2 |
|---|---|
| Equivalent lithium content | 8 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Compare with its family
Volume pricing available on every part.
 NE4068QE50 This part |  ND4054QE50 Same series |  ND2034QE34 Same series |  ND2054QE34 Same series |  NH2034QE34 Same series | |
|---|---|---|---|---|---|
| Voltage | 18 V | 14.4 V (differs) | 14.4 V (differs) | 14.4 V (differs) | 14.4 V (differs) |
| Capacity | 5 Ah | 5 Ah | 3.4 Ah (differs) | 3.4 Ah (differs) | 6.8 Ah (differs) |
| Energy | 90 Wh | 72 Wh (differs) | 49 Wh (differs) | 49 Wh (differs) | 98 Wh (differs) |
| Max discharge | 8 A | 8 A | 4 A (differs) | 4 A (differs) | 8 A |
| Power | 100 W | 80 W (differs) | 40 W (differs) | 40 W (differs) | 80 W (differs) |
| Cells | 5 × 21700 | 4 × 21700 (differs) | 4 × 18650 (differs) | 4 × 18650 (differs) | 8 × 18650 (differs) |
| Configuration | 5S1P | 4S1P (differs) | 4S1P (differs) | 4S1P (differs) | 4S2P (differs) |
| Dimensions (mm) | 94.89 × 119.85 × 27.26 | 94.89 × 96.57 × 27.26 (differs) | 153 × 42 × 23 (differs) | 86.4 × 78.7 × 23.02 (differs) | 282 × 42.5 × 23 (differs) |
| Volume (mm³) | 310,016 | 249,798 (differs) | 147,798 (differs) | 156,529 (differs) | 275,655 (differs) |
| Weight | 462 g | 372 g (differs) | 240 g (differs) | 240 g (differs) | 435 g (differs) |
| Gravimetric density | 195 Wh per kg | 194 Wh per kg (differs) | 204 Wh per kg (differs) | 204 Wh per kg (differs) | 225 Wh per kg (differs) |
| Discharge temperature | −20 °C to +55 °C | −20 °C to +55 °C | −20 °C to +60 °C (differs) | −20 °C to +60 °C (differs) | −20 °C to +60 °C (differs) |
| SoC display | Push button 4-bar LED | Push button 4-bar LED | Always on 5-Bar LCD (differs) | Always on 5-Bar LCD (differs) | Always on 5-Bar LCD (differs) |
| Mating connector | 5-Pin Standard Connector | AMP P/N 5787422-1 or 5787446-1 (differs) | AMP P/N 5787422-1 or 5787446-1 (differs) | AMP P/N 5787422-1 or 5787446-1 (differs) | AMP P/N 5787422-1 or 5787446-1 (differs) |
| Price, qty 1-11 | $192.49 | $169.88 | $123.24 | $123.24 | $185.04 |
This part, NE4068QE50Differs from the NE4068QE50
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
NE4068QE50 Smart Lithium-Ion Battery: The 40xx range of rechargeable smart Li-Ion battery packs are designed for applications where size and runtime may be a consideration.
The NE4068QE50 (5S1P) 18V smartbattery incorporates the standard features that designers and engineers have come to rely on for safety and performance, such as SMbus, a pull tab for easy removal and on-pack LED display for relative SOC indication.
The 4068 battery pack can perform at -20°C for low temperature applications, as the low internal impedance enables the cells to deliver good capacity and discharge current. (Note, in low temperature applications, we recommend testing the device at temperature to validate performance).
Features:
- SMbus
- Pull tab for easy removal
- On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.
NE4068QE50 Smart Li-ion battery customization options:
- Custom label
- Custom Firmware
- Additional performance options for OEM applications N-series chargers are recommended for these batteries.
Custom options
Make it yours.
The NE4068QE50 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
Explore custom optionsCustom label
Your brand or OEM labeling, printed in-house on our label line.
Custom firmware
Battery-management parameters tuned to your device's performance requirements.
Custom connector
Proprietary or standard connector options to match your device's interface.
Custom cell configuration
A different cell count, array or chemistry to hit your voltage and runtime targets.
Custom enclosure
New tooling and injection molding for a form factor built around your device.
