Specifications (nominal & typical)
Source: datasheet Rev 1.2
Charging
| Bays | 2 |
|---|---|
| Functions | Charge, Calibrate |
| Packs supported | 4 listed below |
| Not compatible with | P & Nx4xxx Series batteries CH5050E - NSN # 6130-01-671-8641 CH5050U - NSN # 613 |
Power
| Mains input | 110-240 VAC, 50-60 Hz |
|---|---|
| Power supply included | Yes |
| AC cord options | US, EU, UK |
Mechanical and interface
| Dimensions (L × W × H) | 180 × 122 × 58 mm (7 × 5 × 2.25 in) |
|---|---|
| Mating connector | 5-Pin Standard Connector |
Compliance
| Certifications | CE, CEC, REACH, RoHS3 |
|---|
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Compatibility
Packs supported
| Pack | Voltage | Capacity | Energy | Configuration | Status |
|---|---|---|---|---|---|
| NC3040QE30 | 10.8 V | 3 Ah | 32 Wh | 3S1P | Active |
| ND3054HD30 | 14.4 V | 3 Ah | 43 Wh | 4S1P | Active |
| ND3054QE30 | 14.4 V | 3 Ah | 43 Wh | 4S1P | Active |
| NL2054QE34 | 14.4 V | 10.2 Ah | 147 Wh | 4S3P | Active |
Cables
| Part | What it is |
|---|---|
| 551006 | North American AC Cable: NEMA 5-15 to IEC320 C13: European AC Cable: UK AC Cable |
| 551007 | European AC Cable: Schucko 7/7 to IEC320 C13 |
| 551008 | UK AC Cable: BS1363A to IEC320 C13 |
Accessories
| Part | What it is |
|---|---|
| 599028 | Desktop power supply. |
Stock numbers
| NSN (es batteries CH5050E) | 6130-01-671-8641 |
|---|---|
| NSN (CH5050U) | 6130-01-676-9083 |
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

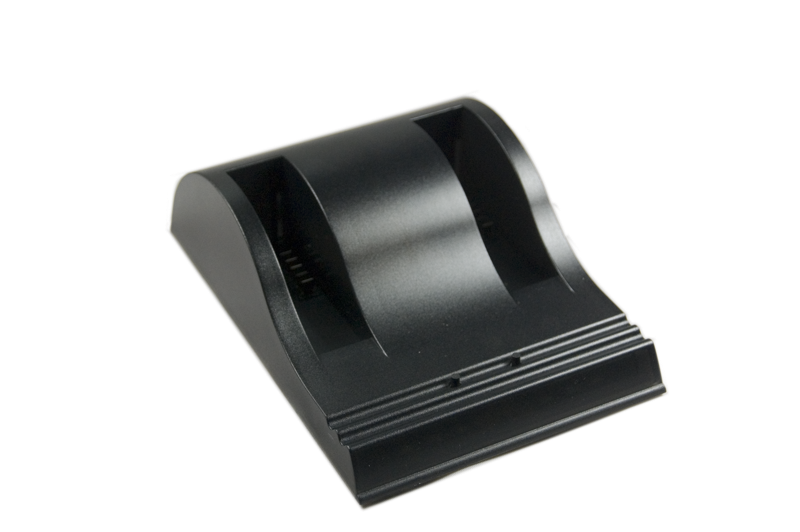

The CH5050CAL 2-bay smart SMbus charger and calibrator is a standalone unit which charges (2) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications.
This is a unit used to adjust the battery state of charge to 25% for shipping or storage when the battery is inserted.
While it also includes a full cycle re-calibration function that will leave the battery fully charged, it is not intended to be used to fully charge a battery.
Complete with a universal power supply (110VAC-240VAC, 50-60HZ) for global compatibility.
AC mains cord options available, please specify your country application when ordering.
Compliant to the current environmental standards for REACH/RoHS3.
Declarations are available below.
CE Compliant, CEC Compliant The CH5050 is not compatible with P & Nx4xxx Series batteries CH5050E - NSN # 6130-01-671-8641 CH5050U - NSN # 6130-01-676-9083 Suffix, A (American), E (European), U (UK) Style power cord
