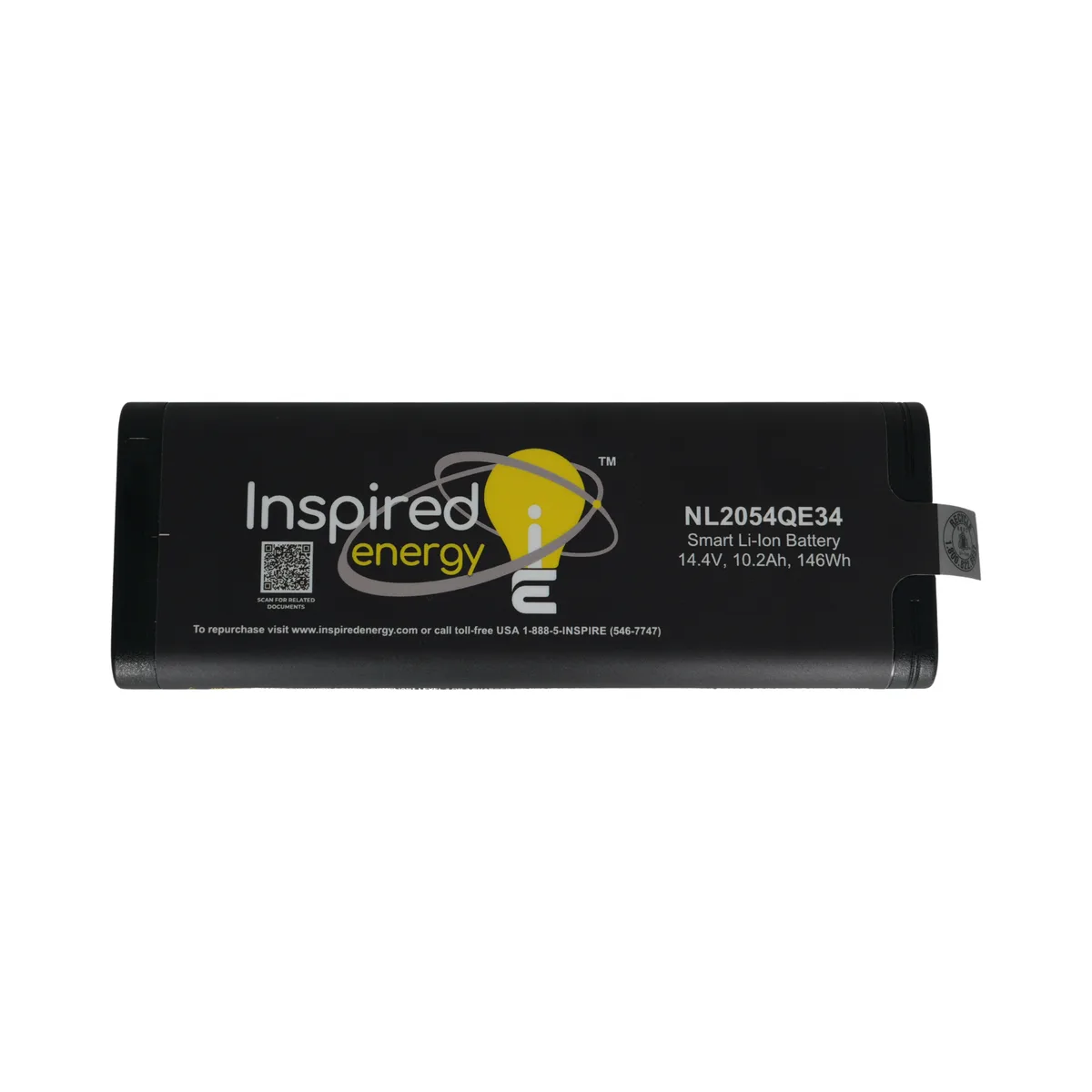

NL2054QE34
14.4 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 1.0.1
Electrical
| Voltage | 14.4 V |
|---|---|
| Capacity | 10.2 Ah |
| Energy | 147 Wh |
| Volumetric energy density | 378 Wh per litre |
| Gravimetric energy density | 227 Wh per kg |
| Maximum discharge current | 8 A |
| Power | 80 W |
| Chemistry | Lithium-ion |
| Cells | 12 × 18650 |
| Configuration | 4S3P |
Mechanical
| Dimensions (L × W × H) | 215.9 × 78.7 × 22.86 mm (8.5 × 3.1 × 0.9 in) |
|---|---|
| Weight | 647 g (1.43 lb) |
| Form factor | Rectangular |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
|---|---|
| State-of-charge display | Always on 5-Bar LCD |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B, IEC 62133-2 (CB report), UL/CSA 62133-2 (TÜV SÜD), CAN/CSA C22.2 No. 62133-2 (TÜV SÜD) |
|---|---|
| Equivalent lithium content | 12 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH5050CAL | 2 | Yes | Yes | No | Active |
| CH7070 | 2 | Yes | No | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
| CH4444 | 4 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Cables
| Part | What it is |
|---|---|
| 629028 | 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries. |
| 629030 | 3', 2-Conductor coiled cable |
Accessories
Compare with its family
Volume pricing available on every part.
 NL2054QE34 This part |  NH2034QE34 Same series |  NH2054QE34 Same series |  NH3054QE34 Same series |  RH2024QE34 Same series | |
|---|---|---|---|---|---|
| Voltage | 14.4 V | 14.4 V | 14.4 V | 14.4 V | 14.4 V |
| Capacity | 10.2 Ah | 6.8 Ah (differs) | 6.8 Ah (differs) | 6.8 Ah (differs) | 6.8 Ah (differs) |
| Energy | 147 Wh | 98 Wh (differs) | 98 Wh (differs) | 98 Wh (differs) | 98 Wh (differs) |
| Max discharge | 8 A | 8 A | 8 A | 10 A (differs) | 8 A |
| Power | 80 W | 80 W | 80 W | 100 W (differs) | 80 W |
| Cells | 12 × 18650 | 8 × 18650 (differs) | 8 × 18650 (differs) | 8 × 18650 (differs) | 8 × 18650 (differs) |
| Configuration | 4S3P | 4S2P (differs) | 4S2P (differs) | 4S2P (differs) | 4S2P (differs) |
| Dimensions (mm) | 215.9 × 78.7 × 22.86 | 282 × 42.5 × 23 (differs) | 153 × 78.7 × 23 (differs) | 153 × 78.7 × 23 (differs) | 167.7 × 107.7 × 21.7 (differs) |
| Volume (mm³) | 388,422 | 275,655 (differs) | 276,945 (differs) | 276,945 (differs) | 391,930 (differs) |
| Weight | 647 g | 435 g (differs) | 435 g (differs) | 435 g (differs) | 470 g (differs) |
| Gravimetric density | 227 Wh per kg | 225 Wh per kg (differs) | 225 Wh per kg (differs) | 225 Wh per kg (differs) | 209 Wh per kg (differs) |
| Discharge temperature | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C |
| SoC display | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Push button 4-bar LED (differs) |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 |
| Price, qty 1-11 | $239.39 | $185.04 | $185.04 | $192.31 | $185.04 |
This part, NL2054QE34Differs from the NL2054QE34
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
NL2054QE34 — Rechargeable Smart Lithium-Ion Battery Pack The Inspired Energy NL2054QE34 is a rugged, intelligent 14.4V / 10.2Ah lithium-ion smart battery designed for high-reliability portable devices.
Built with twelve 18650 cells in a 4S3P configuration, it delivers long runtime, high energy density, and accurate fuel gauging.
An onboard fuel guage continuously measures voltage, current, temperature, and state-of-charge, communicating through SMBus (Smart Battery Data Specification v1.1 compliant) for seamless integration with host devices and smart chargers.
The always-on five-segment LCD provides instant state-of-charge visibility.
Multiple layers of electronic protection safeguard against over-charge, over-discharge, over-current, short-circuit, and temperature extremes.
A passive safety fuse adds an additional layer of protection.
Key Features 14.4V nominal / 10.2Ah capacity SMBus smart battery communication Always-on 5-segment LCD fuel gauge Wide operating temperature range (charge 0°C to +45°C / discharge –20°C to +60°C) Advanced electronic and passive safety protection Ideal for portable medical devices, robotics, test equipment, and rugged industrial applications.
N-series chargers are recommended for these batteries.
