- N-Series
- Battery pack

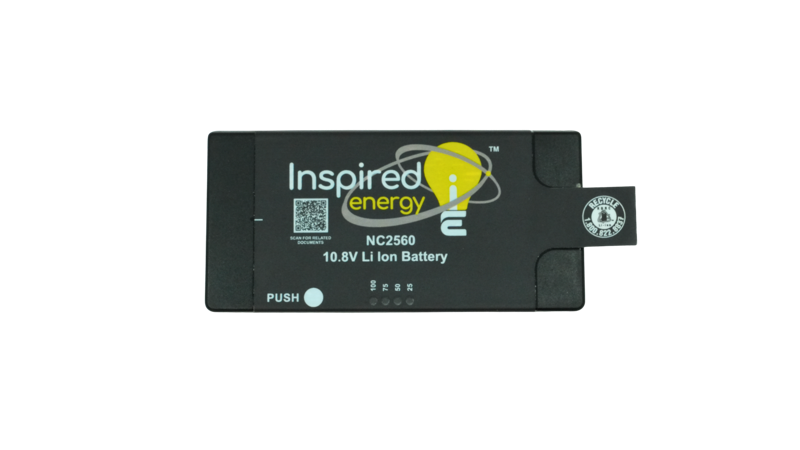

NC2560A22
10.8 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 2.0
Electrical
| Voltage | 10.8 V |
|---|---|
| Capacity | 2.2 Ah |
| Energy | 24 Wh |
| Volumetric energy density | 207 Wh per litre |
| Gravimetric energy density | 142 Wh per kg |
| Maximum discharge current | 2 A |
| Power | 15 W |
| Chemistry | Lithium-ion |
| Cells | × 18650 |
| Configuration | 3S1P |
Mechanical
| Dimensions (L × W × H) | 120 × 60 × 16.13 mm (4.75 × 2.4 × 0.64 in) |
|---|---|
| Weight | 169 g (0.37 lb) |
| Form factor | Rectangular |
| Device cavity | 17mm x 61mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
|---|---|
| State-of-charge display | Always on 5-Bar LCD |
Compliance and shipping
| Certifications | EMC Directive, Low Voltage Directive, Battery Directive, RoHS, UN 38.3, CE, FCC Part 15 Class B |
|---|---|
| Equivalent lithium content | 3 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
| CR12 | 12 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Accessories
| Part | What it is |
|---|---|
| ATA004N | USB-to-SMBus smart battery interface with “Y” USB/Battery cable. |
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
NC2560A22 Smart Lithium-Ion Battery: The Inspired Energy NC2560A22 rechargeable smart Li-Ion battery packs utilize 103450 cells and are designed for applications where size may be a consideration, making it ideal for handheld devices.
The NC2560A22 ( 3S1P ) 10.8V smart lithium ion battery incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LED display for relative SOC indication.
The NC 2560 battery pack can perform at -20°C for low temperature applications, as the low internal impedance enable the cells to deliver good capacity and discharge current. (Note, in low temperature applications, we recommend testing the device at temperature to validate performance).
Features:
- SMbus
- Pull tab for easy removal
- On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.
NC2560A22 Smart Li-ion battery customization options:
- Custom label
- Custom Firmware
- Additional performance options for OEM applications N-series chargers are recommended for these batteries.
Consider the NC2040QE34 smart battery
Custom options
Make it yours.
The NC2560A22 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
Explore custom optionsCustom label
Your brand or OEM labeling, printed in-house on our label line.
Custom firmware
Battery-management parameters tuned to your device's performance requirements.
Custom connector
Proprietary or standard connector options to match your device's interface.
Custom cell configuration
A different cell count, array or chemistry to hit your voltage and runtime targets.
Custom enclosure
New tooling and injection molding for a form factor built around your device.
