- Battery pack

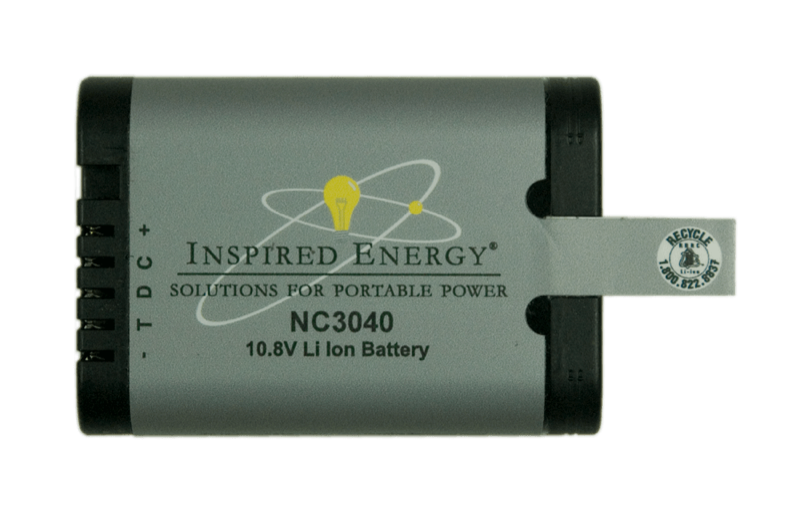

NC3040HD30
10.8 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 2.0
Electrical
| Voltage | 10.8 V |
|---|---|
| Capacity | 3 Ah |
| Energy | 32 Wh |
| Volumetric energy density | 284 Wh per litre |
| Gravimetric energy density | 183 Wh per kg |
| Maximum discharge current | 8 A |
| Power | 60 W |
| Chemistry | Lithium-ion |
| Cells | × 18650 |
| Configuration | 3S1P |
Mechanical
| Dimensions (L × W × H) | 85.1 × 59.02 × 22.4 mm (3.4 × 2.4 × 0.9 in) |
|---|---|
| Weight | 175 g (0.39 lb) |
| Device cavity | 23.5mm x 60mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −30 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
|---|---|
| State-of-charge display | Always on 5-Bar LCD |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B |
|---|---|
| Equivalent lithium content | 3 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
| CR12 | 12 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Compare with its family
Volume pricing available on every part.
 NC3040HD30 This part |  NC2040HD34 Same family |  NC2040QE34 Same family |  NC3040HD29 Same family |  NC3040QE30 Same family | |
|---|---|---|---|---|---|
| Voltage | 10.8 V | 10.8 V | 10.8 V | 10.8 V | 10.8 V |
| Capacity | 3 Ah | 3.4 Ah (differs) | 3.4 Ah (differs) | 2.8 Ah (differs) | 3 Ah |
| Energy | 32 Wh | 37 Wh (differs) | 37 Wh (differs) | 30 Wh (differs) | 32 Wh |
| Max discharge | 8 A | 4 A (differs) | 4 A (differs) | 8 A | 8 A |
| Power | 60 W | 30 W (differs) | 30 W (differs) | 60 W | 60 W |
| Cells | × 18650 | × 18650 | × 18650 | 3 × 18650 (differs) | 3 × 18650 (differs) |
| Configuration | 3S1P | 3S1P | 3S1P | 3S1P | 3S1P |
| Dimensions (mm) | 85.1 × 59.02 × 22.4 | 84.87 × 58.77 × 21.89 (differs) | 84.87 × 58.77 × 21.89 (differs) | 85.1 × 59.02 × 22.4 | 85 × 59 × 22 (differs) |
| Volume (mm³) | 112,506 | 109,183 (differs) | 109,183 (differs) | 112,506 | 110,330 (differs) |
| Weight | 175 g | 184 g (differs) | 184 g (differs) | 184 g (differs) | 175 g |
| Gravimetric density | 183 Wh per kg | 201 Wh per kg (differs) | 201 Wh per kg (differs) | 163 Wh per kg (differs) | 183 Wh per kg |
| Discharge temperature | −30 °C to +60 °C | −20 °C to +60 °C (differs) | −20 °C to +60 °C (differs) | −30 °C to +60 °C | −30 °C to +60 °C |
| SoC display | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | 5-Pin Standard Connector (differs) |
| Price, qty 1-11 | $129.98 | $112.23 | $114.89 | $120.41 | $132.64 |
This part, NC3040HD30Differs from the NC3040HD30
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
The NC3040 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current.
The NC3040 can perform as low as -10C and the has tested as low as -30C. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application).
Also, with its 8A discharge capability, the NC3040 is ideally suited as a small hot-swap battery to hold up the device for a short period while the main battery is charged.
These smart Li-ion batteries can be customized to meet unique specifications.
Custom label, custom firmware and some performance options are available.
Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise.
To place an order or for additional quantity pricing, please contact us.
Custom options
Make it yours.
The NC3040HD30 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
Explore custom optionsCustom label
Your brand or OEM labeling, printed in-house on our label line.
Custom firmware
Battery-management parameters tuned to your device's performance requirements.
Custom connector
Proprietary or standard connector options to match your device's interface.
Custom cell configuration
A different cell count, array or chemistry to hit your voltage and runtime targets.
Custom enclosure
New tooling and injection molding for a form factor built around your device.
