- Nickel Metal Hydride
- Battery pack

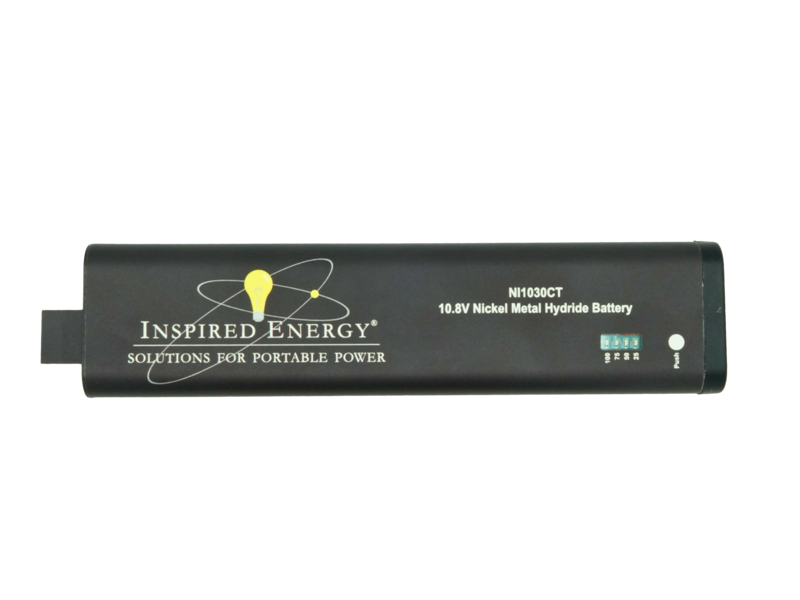

Ni1030CT
10.8 V smart NiMH battery
Specifications (nominal & typical)
Source: datasheet Rev 5.0
Electrical
| Voltage | 10.8 V |
|---|---|
| Capacity | 3.9 Ah |
| Energy | 42 Wh |
| Volumetric energy density | 192 Wh per litre |
| Gravimetric energy density | 82 Wh per kg |
| Maximum discharge current | 3 A |
| Chemistry | Nickel metal hydride |
| Configuration | 9S1P |
Mechanical
| Dimensions (L × W × H) | 215 × 52.8 × 19.3 mm (8.5 × 2.1 × 0.8 in) |
|---|---|
| Weight | 510 g (1.12 lb) |
| Form factor | Rectangular |
| Ingress protection | None |
Compliance and shipping
| Certifications | EMC Directive, Low Voltage Directive, Toxic Chemicals Directive, FCC, CE |
|---|
Confirm every value against the datasheet before you commit a design. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
| CR12 | 12 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Accessories
| Part | What it is |
|---|---|
| ATA004N | USB-to-SMBus smart battery interface with “Y” USB/Battery cable. |
Stock numbers
| NSN (AMP 787415-1) | 6130-01-485-8709 |
|---|
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
The NI1030CT is a rechargeable smart Nickel Metal Hydride battery pack built for OEM equipment that needs reliable, communicative portable power.
Nine 4/3A cells in a 9-series configuration deliver 10.8V nominal and 3850mAh typical capacity, with a minimum of 3000mAh at a 3A discharge rate.
Fully SMBus and SBDS Revision 1.0 compliant, the pack manages its own charging by requesting the appropriate voltage and current from any SMBus Level II or Level III smart charger.
An integrated fuel gauge reports state of charge, remaining capacity, run time, cycle count, and temperature directly to the host, applying continuous compensation for cell non-linearity and environmental conditions so runtime predictions stay meaningful over the life of the pack.
Four on-pack LEDs with push-button activation give operators an at-a-glance capacity reading without powering up the host device.
Key specifications Nominal voltage: 10.8V Typical capacity: 3850mAh (3500mAh minimum at 0.2C) Chemistry: Nickel Metal Hydride, 9S configuration Maximum continuous discharge: 3A Discharge temperature range: 0°C to +50°C Charge temperature range: 0°C to +40°C at 3A rate Communication: SMBus / SBDS Rev 1.0 Weight: 510g ±20g Dimensions: 214.50mm × 52.50mm × 19.00mm (max, including label) Mating connector: AMP 787415-1 NSN 6130-01-485-8709 To place an order or for pricing, please contact us.
