PH2054HD34 and PH4000 Package Offer
14.4 V smart lithium-ion battery
Specifications (nominal & typical)
Source: current catalog record
Electrical
| Voltage | 14.4 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 98 Wh |
| Maximum discharge current | 8 A |
| Power | 80 W |
| Chemistry | Lithium-ion |
Mechanical
| Form factor | Rectangular |
|---|---|
| Ingress protection | None |
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| PH4000 | 1 | Yes | No | No | Active |
| PH1000 | 1 | Yes | Yes | No | Active |
| PH1111 | 4 | Yes | Yes | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Compare with its family
Volume pricing available on every part.
 PH2054HD34 and PH4000 Package Offer This part |  PH2054HD34 Same family |  PH2054QE34 Same family |  PH3054HD29 Same family |  PH3054QE29 Same family | |
|---|---|---|---|---|---|
| Voltage | 14.4 V | 14.4 V | 14.4 V | 14.4 V | 14.4 V |
| Capacity | 6.8 Ah | 6.8 Ah | 6.8 Ah | 5.6 Ah (differs) | 5.6 Ah (differs) |
| Energy | 98 Wh | 98 Wh | 98 Wh | 81 Wh (differs) | 81 Wh (differs) |
| Max discharge | 8 A | 10 A (differs) | 10 A (differs) | 20 A (differs) | 20 A (differs) |
| Power | 80 W | 100 W (differs) | 100 W (differs) | 200 W (differs) | 200 W (differs) |
| Cells | - | 8 × 18650 (differs) | 8 × 18650 (differs) | 8 × 18650 (differs) | 8 × 18650 (differs) |
| Configuration | - | 4S2P (differs) | 4S2P (differs) | 4S2P (differs) | 4S2P (differs) |
| Dimensions (mm) | - | 168.1 × 81.8 × 27.7 (differs) | 168.1 × 81.8 × 27.7 (differs) | 168.1 × 81.8 × 27.7 (differs) | 168.1 × 81.8 × 27.7 (differs) |
| Volume (mm³) | - | 380,891 (differs) | 380,891 (differs) | 380,891 (differs) | 380,891 (differs) |
| Weight | - | 450 g (differs) | 450 g (differs) | 450 g (differs) | 450 g (differs) |
| Gravimetric density | - | 218 Wh per kg (differs) | 218 Wh per kg (differs) | 180 Wh per kg (differs) | 180 Wh per kg (differs) |
| Discharge temperature | - | −20 °C to +60 °C (differs) | −20 °C to +60 °C (differs) | −30 °C to +60 °C (differs) | −30 °C to +60 °C (differs) |
| SoC display | - | Always on 5-Bar LCD (differs) | Always on 5-Bar LCD (differs) | Always on 5-Bar LCD (differs) | Always on 5-Bar LCD (differs) |
| Mating connector | - | 7-Pin D-Sub (differs) | 7-Pin D-Sub (differs) | 7-Pin D-Sub (differs) | AMP/TYCO 787615-1, 787614-1 and 787613-1 (differs) |
| Price, qty 1-11 | $292.40 | $187.44 | $190.10 | $189.20 | $191.86 |
This part, PH2054HD34 and PH4000 Package OfferDiffers from the PH2054HD34 and PH4000 Package Offer
Documents
Datasheet on request. The current revision for this part is issued by engineering. Ask for it and it comes with the quote.
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

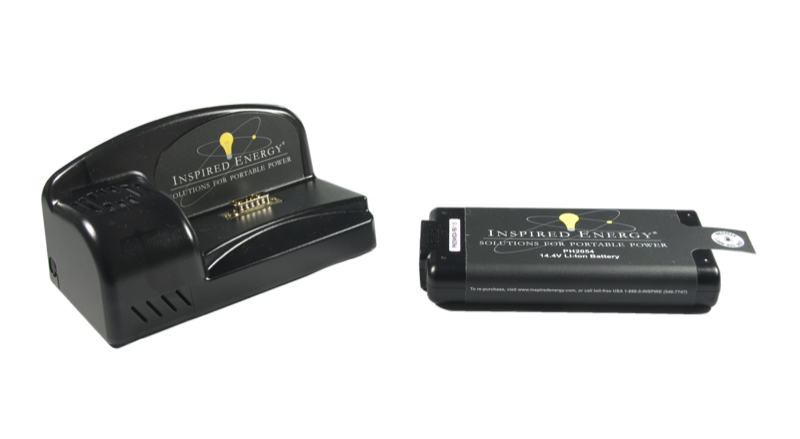

To further support our customers we are offering special pricing for the PH2054HD34 and the PH4000 SMbus desktop charger when bought together.
The PH4000 charger can be used with all Inspired Energy P-Series batteries, less than 18V.
These products are compatible with FG.1809 EM36-BPBT-1809 & FG.1810 EM36-BPCH-1810 for EM360 units. ch To place an order or for additional quantity pricing, please contact us.
