- P-Series
- Battery pack

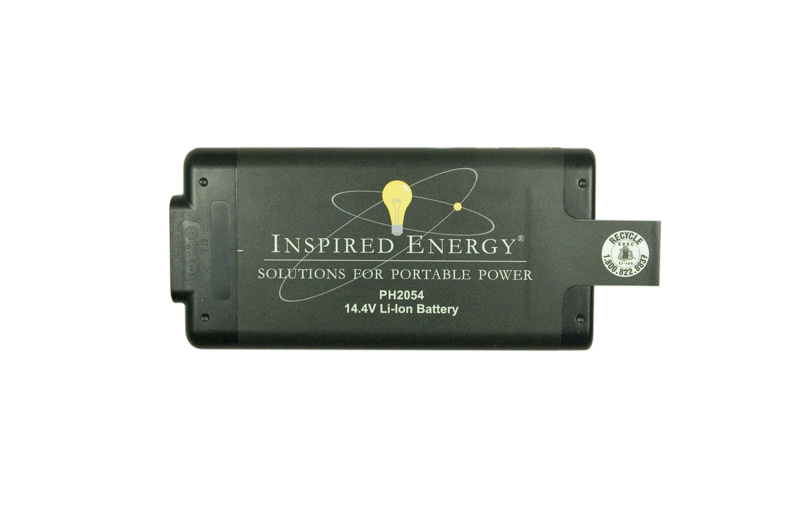

PH2054HD34
14.4 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 2.0
Electrical
| Voltage | 14.4 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 98 Wh |
| Volumetric energy density | 257 Wh per litre |
| Gravimetric energy density | 218 Wh per kg |
| Maximum discharge current | 10 A |
| Power | 100 W |
| Chemistry | Lithium-ion |
| Cells | 8 × 18650 |
| Configuration | 4S2P |
Mechanical
| Dimensions (L × W × H) | 168.1 × 81.8 × 27.7 mm (6.62 × 3.22 × 1.1 in) |
|---|---|
| Weight | 450 g (0.99 lb) |
| Form factor | Rectangular |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | 7-Pin D-Sub |
|---|---|
| State-of-charge display | Always on 5-Bar LCD |
Compliance and shipping
| Certifications | UKCA, EMC Directive, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B |
|---|---|
| Equivalent lithium content | 6.9 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| PH1000 | 1 | Yes | Yes | No | Active |
| PH1111 | 4 | Yes | Yes | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 619039 | 30A Right Angle PC mount mating connector for P- Series batteries. |
| 699012 | Backshell Required for 699013 |
| 699013 | Straight "P" Connector for Flying Lead |
| 699014 | P-Series Mating connector kit. |
| 699023 | P-Series Mating connector kit. |
Accessories
Compare with its family
Volume pricing available on every part.
 PH2054HD34 This part |  PH3054HD29 Same family |  PH2054HD34 and PH4000 Package Offer Same family |  PH3054QE29 Same family | |
|---|---|---|---|---|
| Voltage | 14.4 V | 14.4 V | 14.4 V | 14.4 V |
| Capacity | 6.8 Ah | 5.6 Ah (differs) | 6.8 Ah | 5.6 Ah (differs) |
| Energy | 98 Wh | 81 Wh (differs) | 98 Wh | 81 Wh (differs) |
| Max discharge | 10 A | 20 A (differs) | 8 A (differs) | 20 A (differs) |
| Power | 100 W | 200 W (differs) | 80 W (differs) | 200 W (differs) |
| Cells | 8 × 18650 | 8 × 18650 | - (differs) | 8 × 18650 |
| Configuration | 4S2P | 4S2P | - (differs) | 4S2P |
| Dimensions (mm) | 168.1 × 81.8 × 27.7 | 168.1 × 81.8 × 27.7 | - (differs) | 168.1 × 81.8 × 27.7 |
| Volume (mm³) | 380,891 | 380,891 | - (differs) | 380,891 |
| Weight | 450 g | 450 g | - (differs) | 450 g |
| Gravimetric density | 218 Wh per kg | 180 Wh per kg (differs) | - (differs) | 180 Wh per kg (differs) |
| Discharge temperature | −20 °C to +60 °C | −30 °C to +60 °C (differs) | - (differs) | −30 °C to +60 °C (differs) |
| SoC display | Always on 5-Bar LCD | Always on 5-Bar LCD | - (differs) | Always on 5-Bar LCD |
| Mating connector | 7-Pin D-Sub | 7-Pin D-Sub | - (differs) | AMP/TYCO 787615-1, 787614-1 and 787613-1 (differs) |
| Price, qty 1-11 | $187.44 | $189.20 | $292.40 | $191.86 |
This part, PH2054HD34Differs from the PH2054HD34
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
The PH2054 uses high capacity cells to maximize the energy density stored within the rugged case.
Complete with a new standard connector to handle its higher operating voltage and higher discharge currents.
The P-series charger is required for these batteries.
Its rugged construction rating reflects its application in mobile environments.
These smart Li-ion batteries can be customized to meet unique specifications.
Custom label, custom firmware and some performance options are available.
Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise.
Compatible with FG.1809, EM36-BPBT-1809 for EM360 units.
To place an order or for additional quantity pricing, please contact us.
Custom options
Make it yours.
The PH2054HD34 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
Explore custom optionsCustom label
Your brand or OEM labeling, printed in-house on our label line.
Custom firmware
Battery-management parameters tuned to your device's performance requirements.
Custom connector
Proprietary or standard connector options to match your device's interface.
Custom cell configuration
A different cell count, array or chemistry to hit your voltage and runtime targets.
Custom enclosure
New tooling and injection molding for a form factor built around your device.
