Specifications (nominal & typical)
Source: datasheet Rev 3.0
Electrical
| Voltage | 7.2 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 49 Wh |
| Volumetric energy density | 449 Wh per litre |
| Gravimetric energy density | 223 Wh per kg |
| Maximum discharge current | 3 A |
| Power | 15 W |
| Chemistry | Lithium-ion |
| Configuration | 2S2P |
Mechanical
| Dimensions (L × W × H) | 144.65 × 37.59 × 20.07 mm (5.69 × 1.48 × 0.79 in) |
|---|---|
| Weight | 220 g (0.49 lb) |
| Form factor | Rectangular |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B |
|---|
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH7070 | 2 | Yes | No | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
| CH4444 | 4 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Accessories
| Part | What it is |
|---|---|
| ATA004N | USB-to-SMBus smart battery interface with “Y” USB/Battery cable. |
Compare with its family
Volume pricing available on every part.
 ND2017A34 This part |  ND2017QE34 Same family | |
|---|---|---|
| Voltage | 7.2 V | 7.2 V |
| Capacity | 6.8 Ah | 6.8 Ah |
| Energy | 49 Wh | 49 Wh |
| Max discharge | 3 A | 3 A |
| Power | 15 W | 15 W |
| Cells | - | 4 × 18650 (differs) |
| Configuration | 2S2P | 2S2P |
| Dimensions (mm) | 144.65 × 37.59 × 20.07 | 144.65 × 37.59 × 20.07 |
| Volume (mm³) | 109,128 | 109,128 |
| Weight | 220 g | 220 g |
| Gravimetric density | 223 Wh per kg | 223 Wh per kg |
| Discharge temperature | −20 °C to +60 °C | −20 °C to +60 °C |
| SoC display | - | Push button 4-bar LED (differs) |
| Mating connector | - | 5-Pin Standard Connector (differs) |
| Price, qty 1-11 | $120.58 | $123.24 |
This part, ND2017A34Differs from the ND2017A34
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

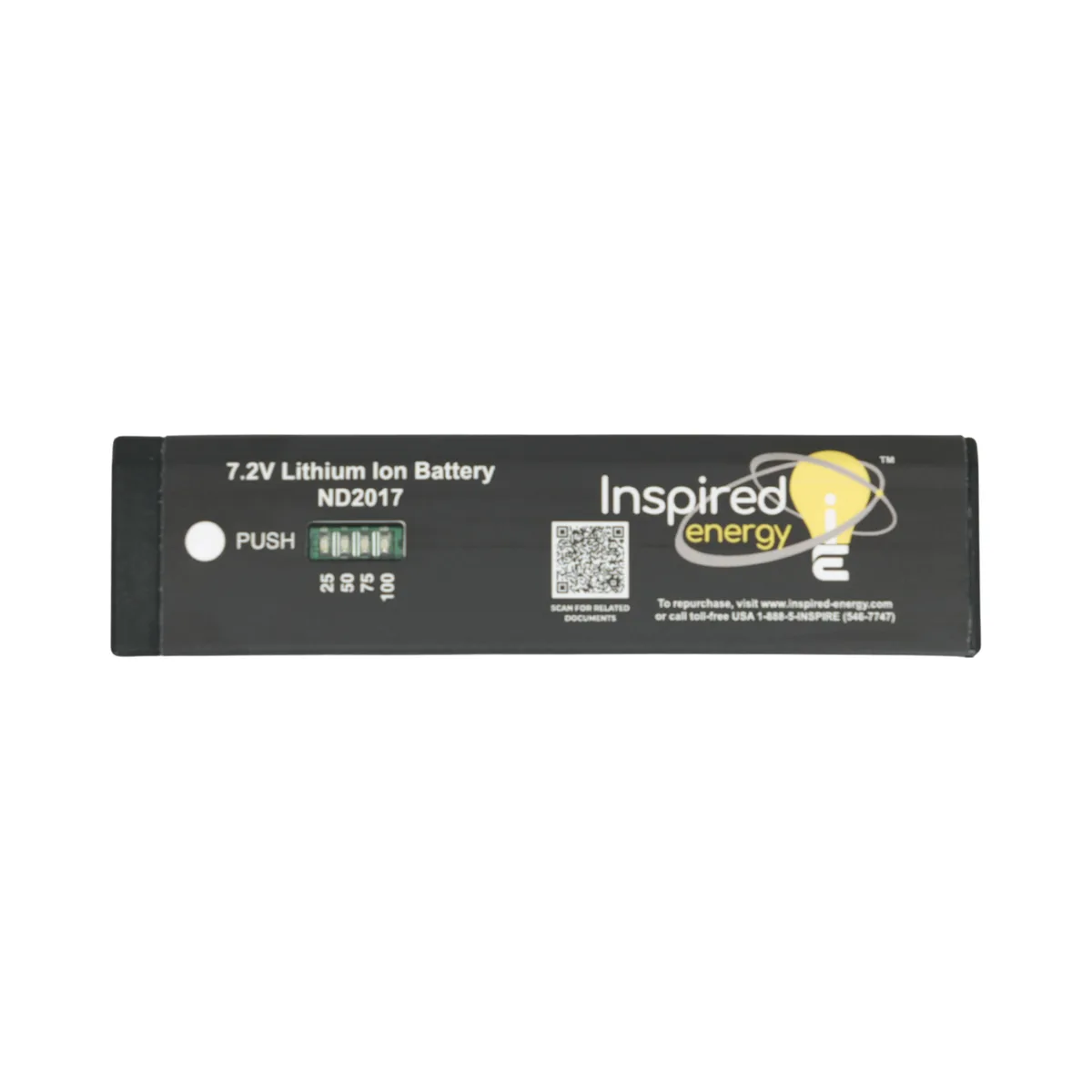

ND2017A34 Smart Lithium-Ion Battery: The ND2017A34 (2S2P) 7.2V smart lithium ion battery pack incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LED display for relative SOC indication.
Features:
- SMbus
- Pull tab for easy removal
- On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.
ND2017A34 Smart Li-ion battery customization options:
- Custom label
- Custom Firmware
Consider the ND2017QE34 smart battery Looking for something with a higher discharge rate and lower temperature option?
We recommend the ND3037HD29 smart battery Need additional capacity?
Check out our NB4037 smart batteries The ND2017A34 Li-ion battery has been updated as a replacement for the previous ND2017A22, ND2017A24 & ND2017A29 models.
