NH2054QE34

14.4 V smart lithium-ion battery

Active Specs per datasheet Rev 3.0 UL approved

Voltage
14.4V
Capacity
6.8Ah
Energy
98Wh
Max discharge
8A
Power
80W
18650 cells
4S2P
Datasheet (Rev 3.0) Request a quote Buy 1-11 now

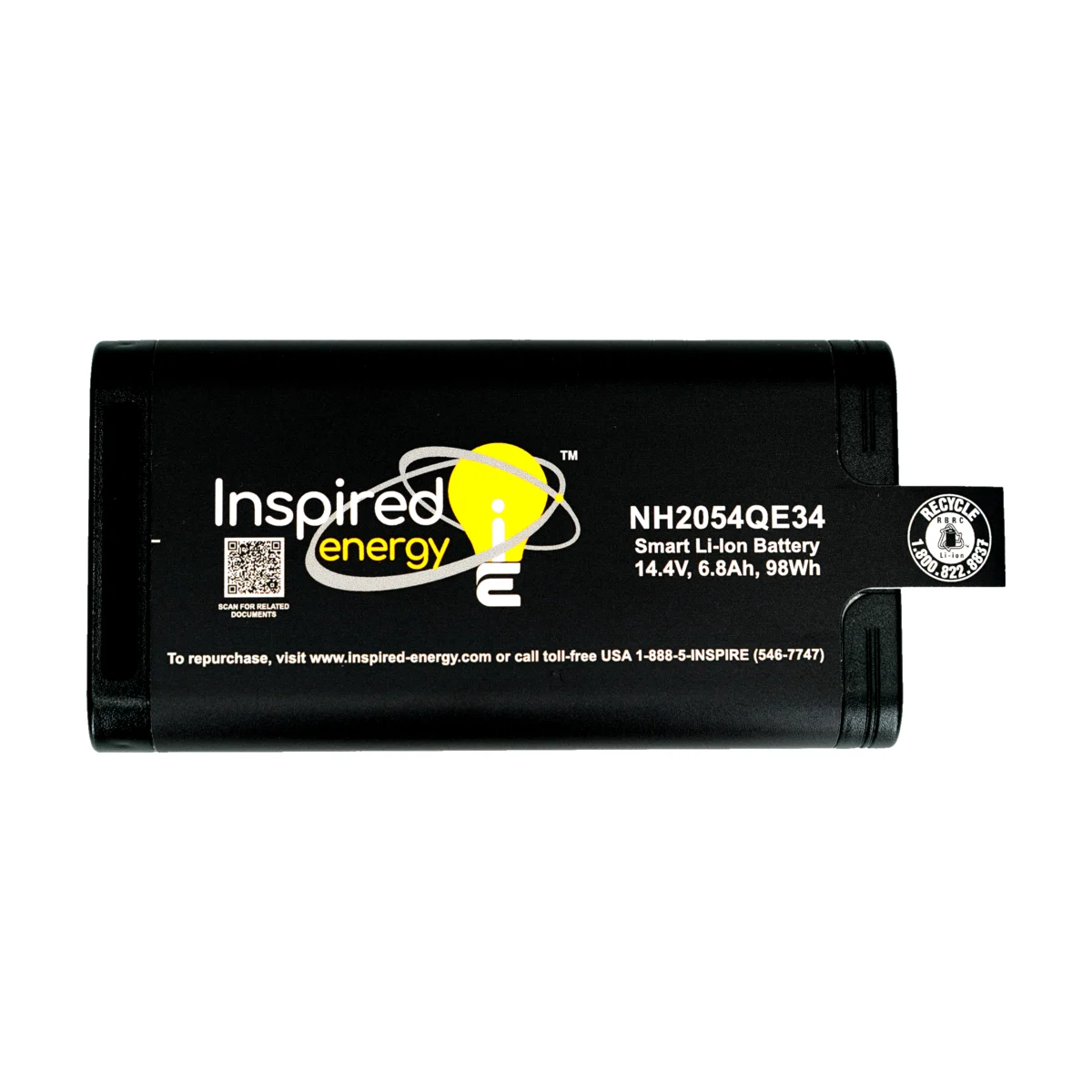

NH2054QE34 product photo

Specifications (nominal & typical)

Source: datasheet Rev 3.0

Electrical

Voltage14.4 V
Capacity6.8 Ah
Energy98 Wh
Volumetric energy density354 Wh per litre
Gravimetric energy density225 Wh per kg
Maximum discharge current8 A
Power80 W
ChemistryLithium-ion
Cells8 × 18650
Configuration4S2P

Mechanical

Dimensions (L × W × H)153 × 78.7 × 23 mm (6 × 3.1 × 0.9 in)
Weight435 g (0.96 lb)
Form factorRectangular
Device cavity23.5mm x 80mm cross section
Ingress protectionNone

Temperature limits

Discharge (operating)−20 °C to +60 °C
Charge0 °C to +45 °C
Storage−20 °C to +60 °C

Interface

Mating connectorAMP P/N 5787422-1 or 5787446-1
State-of-charge displayAlways on 5-Bar LCD
Optional belt packMPL205X or MCL205X

Compliance and shipping

CertificationsEMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B, IEC 62133-2 (CB report), UL 62133-2, KC (Korea), BIS (India), PSE (Japan)
Equivalent lithium content8 g

Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.

Compatibility

Chargers

ChargerBaysChargeCalibrateSet SoC 25%Status
CH1000 1 Yes Yes No Active
CH4000 1 Yes No No Active
CH5000 1 Yes Yes No Active
CH4040 2 Yes No No Active
CH5555 4 Yes Yes No Active

Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.

Connectors

PartWhat it is
610005Straight Connector - TE Part Number: 5787446-1
61000790° Connector with Right-Hand Key - TE Part Number: 5787422-1
61001890° Connector with Left-Hand Key - TE Part Number 5787428-1
BL237AConnector Mounting Circuit Board
EB397AConnector Board with Ideal Diode Circuit.

Cables

PartWhat it is
6290303', 2-Conductor coiled cable
6290283', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.

Accessories

PartWhat it is
936186Travel / dust cap for 205x range batteries
ATA004NUSB-to-SMBus smart battery interface with “Y” USB/Battery cable.
MCL205VC Car ChargerNo description published.
MCL205-2BV01Mini Long Belt Charger for NH2054 and NH2057 battery packs.
MCL205-2BV02Mini Long Belt Charger for NH2054 and NH2057 battery packs.
MCL205-2D1201Mini Long Belt Charger for NH2054 and NH2057 battery packs.
MCL205-5BV01Mini Long Belt Charger for NH2054 and NH2057 battery packs.

Compare with its family

Volume pricing available on every part.

NH2054QE34 This part ND2054QE34 Same family NH3054QE34 Same family NH2034QE34 Same series RH2024QE34 Same series
Voltage 14.4 V14.4 V14.4 V14.4 V14.4 V
Capacity 6.8 Ah3.4 Ah6.8 Ah6.8 Ah6.8 Ah
Energy 98 Wh49 Wh98 Wh98 Wh98 Wh
Max discharge 8 A4 A10 A8 A8 A
Power 80 W40 W100 W80 W80 W
Cells 8 × 186504 × 186508 × 186508 × 186508 × 18650
Configuration 4S2P4S1P4S2P4S2P4S2P
Dimensions (mm) 153 × 78.7 × 2386.4 × 78.7 × 23.02153 × 78.7 × 23282 × 42.5 × 23167.7 × 107.7 × 21.7
Volume (mm³) 276,945156,529276,945275,655391,930
Weight 435 g240 g435 g435 g470 g
Gravimetric density 225 Wh per kg204 Wh per kg225 Wh per kg225 Wh per kg209 Wh per kg
Discharge temperature −20 °C to +60 °C−20 °C to +60 °C−20 °C to +60 °C−20 °C to +60 °C−20 °C to +60 °C
SoC display Always on 5-Bar LCDAlways on 5-Bar LCDAlways on 5-Bar LCDAlways on 5-Bar LCDPush button 4-bar LED
Mating connector AMP P/N 5787422-1 or 5787446-1AMP P/N 5787422-1 or 5787446-1AMP P/N 5787422-1 or 5787446-1AMP P/N 5787422-1 or 5787446-1AMP P/N 5787422-1 or 5787446-1
Price, qty 1-11 $185.04$123.24$192.31$185.04$185.04

This part, NH2054QE34Differs from the NH2054QE34

All N-Series parts in the finder

Documents

Need a STEP model, drawing or test data that is not listed? Contact us.

Application notes

From the current catalog

The 2054 battery can perform as low as -20°C (note, in low temperature applications, we recommend testing the device at temperature to validate performance).

Also, with its’ 8A discharge capability, the NH2054 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged.

Features:

  • SMbus
  • Pull tab for easy removal
  • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.

NH2054QE34 Smart Li-ion battery customization options:

  • Custom label
  • Custom Firmware
  • Additional performance options for OEM applications N-series chargers are recommended for these batteries.

Looking for something with a higher discharge rate and lower temperature option?

We recommend the NH3054HD34 smart battery Need additional capacity?

Check out our NH2057HD34 smart batteries The NH2054QE34 is our newest model, designed to outperform the previous NH2054HD29 & NH2054HD31 models.
