NH3054QE34

14.4 V smart lithium-ion battery

Active Specs per datasheet Rev 1.1.1 UL approved

Voltage
14.4V
Capacity
6.8Ah
Energy
98Wh
Max discharge
10A
Power
100W
18650 cells
4S2P
Datasheet (Rev 1.1.1) Request a quote

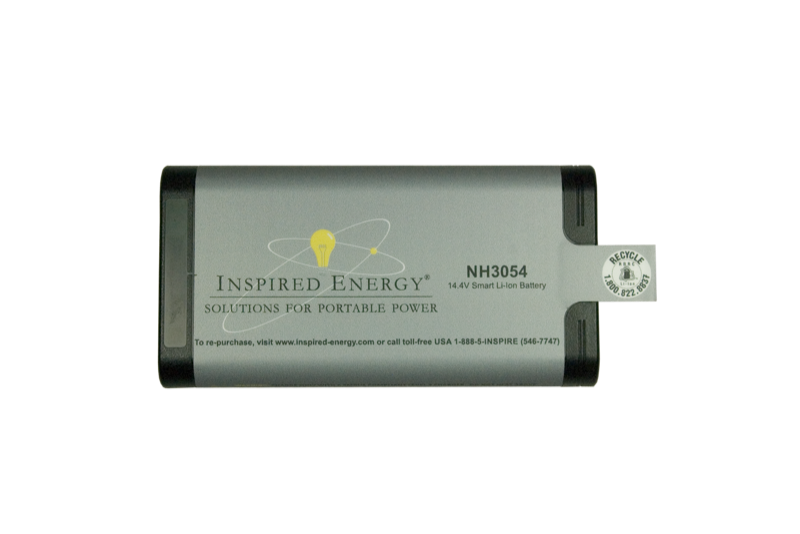

NH3054QE34 product photo

Specifications (nominal & typical)

Source: datasheet Rev 1.1.1

Electrical

Voltage14.4 V
Capacity6.8 Ah
Energy98 Wh
Volumetric energy density354 Wh per litre
Gravimetric energy density225 Wh per kg
Maximum discharge current10 A
Power100 W
ChemistryLithium-ion
Cells8 × 18650
Configuration4S2P

Mechanical

Dimensions (L × W × H)153 × 78.7 × 23 mm (6 × 3.1 × 0.9 in)
Weight435 g (0.96 lb)
Form factorRectangular
Device cavity23.5mm x 80mm cross section
Ingress protectionNone

Temperature limits

Discharge (operating)−20 °C to +60 °C
Charge0 °C to +45 °C
Storage−20 °C to +60 °C

Interface

Mating connectorAMP P/N 5787422-1 or 5787446-1
State-of-charge displayAlways on 5-Bar LCD
Optional belt packMPL205X or MCL205X

Compliance and shipping

CertificationsEMC Directive, UKCA, Battery Directive, RoHS2, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B, IEC 62133 2nd edition (CB report), UL/CSA 62133, CAN/CSA C22.2 No. 62133
Equivalent lithium content8 g

Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.

Compatibility

Chargers

ChargerBaysChargeCalibrateSet SoC 25%Status
CH1000 1 Yes Yes No Active
CH4000 1 Yes No No Active
CH5000 1 Yes Yes No Active
CH4040 2 Yes No No Active
CH4444 4 Yes No No Active

Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.

Connectors

PartWhat it is
610005Straight Connector - TE Part Number: 5787446-1
61000790° Connector with Right-Hand Key - TE Part Number: 5787422-1
61001890° Connector with Left-Hand Key - TE Part Number 5787428-1
BL237AConnector Mounting Circuit Board
EB397AConnector Board with Ideal Diode Circuit.

Cables

PartWhat it is
6290303', 2-Conductor coiled cable
6290283', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.

Accessories

PartWhat it is
936186Travel / dust cap for 205x range batteries
ATA004NUSB-to-SMBus smart battery interface with “Y” USB/Battery cable.
MCL205VC Car ChargerNo description published.

Compare with its family

Volume pricing available on every part.

NH3054QE34 This part ND2054QE34 Same family NH2054QE34 Same family NH2034QE34 Same series RH2024QE34 Same series
Voltage 14.4 V14.4 V14.4 V14.4 V14.4 V
Capacity 6.8 Ah3.4 Ah6.8 Ah6.8 Ah6.8 Ah
Energy 98 Wh49 Wh98 Wh98 Wh98 Wh
Max discharge 10 A4 A8 A8 A8 A
Power 100 W40 W80 W80 W80 W
Cells 8 × 186504 × 186508 × 186508 × 186508 × 18650
Configuration 4S2P4S1P4S2P4S2P4S2P
Dimensions (mm) 153 × 78.7 × 2386.4 × 78.7 × 23.02153 × 78.7 × 23282 × 42.5 × 23167.7 × 107.7 × 21.7
Volume (mm³) 276,945156,529276,945275,655391,930
Weight 435 g240 g435 g435 g470 g
Gravimetric density 225 Wh per kg204 Wh per kg225 Wh per kg225 Wh per kg209 Wh per kg
Discharge temperature −20 °C to +60 °C−20 °C to +60 °C−20 °C to +60 °C−20 °C to +60 °C−20 °C to +60 °C
SoC display Always on 5-Bar LCDAlways on 5-Bar LCDAlways on 5-Bar LCDAlways on 5-Bar LCDPush button 4-bar LED
Mating connector AMP P/N 5787422-1 or 5787446-1AMP P/N 5787422-1 or 5787446-1AMP P/N 5787422-1 or 5787446-1AMP P/N 5787422-1 or 5787446-1AMP P/N 5787422-1 or 5787446-1
Price, qty 1-11 $192.31$123.24$185.04$185.04$185.04

This part, NH3054QE34Differs from the NH3054QE34

All N-Series parts in the finder

Documents

Need a STEP model, drawing or test data that is not listed? Contact us.

Application notes

From the current catalog

The NH3054 can perform as low as -10°C (note, in low temperature applications, we recommend testing the device at temperature to validate performance).

Also, with its 10A discharge capability, the NH3054 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged.

Features:

  • SMbus
  • Pull tab for easy removal
  • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.

NH3054QE34 Smart Li-ion battery customization options:

  • Custom label
  • Custom Firmware
  • Additional performance options for OEM applications N-series chargers are recommended for these batteries.

Looking for something with a higher discharge rate and lower temperature option?

We recommend the NH3057QE34 smart battery The NH3054QE34 is our newest model, designed to outperform the previous NH3054HD29 and NH3054HD31 models.

Custom options

Make it yours.

The NH3054QE34 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.

Explore custom options

  • Custom label

    Your brand or OEM labeling, printed in-house on our label line.

  • Custom firmware

    Battery-management parameters tuned to your device's performance requirements.

  • Custom connector

    Proprietary or standard connector options to match your device's interface.

  • Custom cell configuration

    A different cell count, array or chemistry to hit your voltage and runtime targets.

  • Custom enclosure

    New tooling and injection molding for a form factor built around your device.

Can't find the right configuration?

We build custom battery packs, custom labels, firmware and connectors to fit your exact device. Tell us what it has to do.

Contact us Request a quote
