- N-Series
- Battery pack

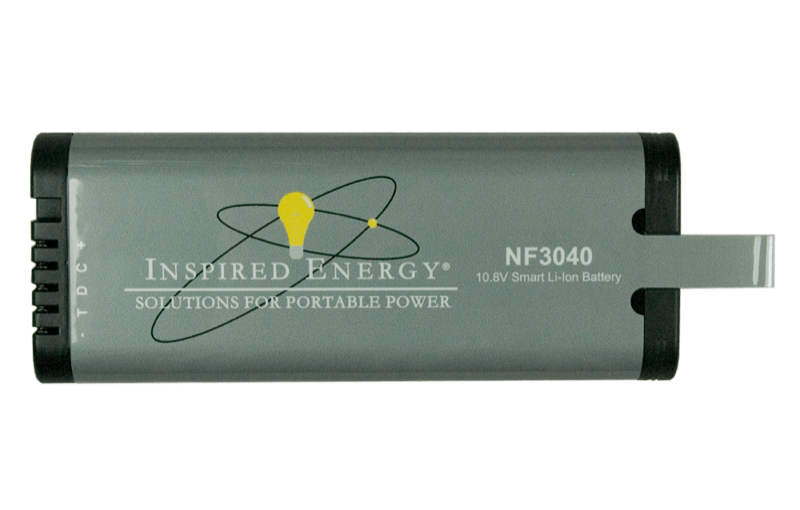

NF3040HD29
10.8 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 1.0.1
Electrical
| Voltage | 10.8 V |
|---|---|
| Capacity | 5.6 Ah |
| Energy | 60 Wh |
| Volumetric energy density | 300 Wh per litre |
| Gravimetric energy density | 172 Wh per kg |
| Maximum discharge current | 10 A |
| Power | 75 W |
| Chemistry | Lithium-ion |
| Cells | 6 × 18650 |
| Configuration | 3S2P |
Mechanical
| Dimensions (L × W × H) | 151.1 × 59.02 × 22.4 mm (5.9 × 2.4 × 0.9 in) |
|---|---|
| Weight | 349 g (0.77 lb) |
| Form factor | Rectangular |
| Device cavity | 23.5mm x 60mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −30 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
|---|---|
| State-of-charge display | Always on 5-Bar LCD |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS2, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B |
|---|---|
| Equivalent lithium content | 6 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH7070 | 2 | Yes | No | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
| CH4444 | 4 | Yes | No | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
| CR12 | 12 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Cables
| Part | What it is |
|---|---|
| 629028 | 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries. |
| 629030 | 3', 2-Conductor coiled cable |
Accessories
Compare with its family
Volume pricing available on every part.
 NF3040HD29 This part |  NF2040HD34 Same family |  NF2040QE34 Same family |  NF3040HD34 Same family |  NF3040QE34 Same family | |
|---|---|---|---|---|---|
| Voltage | 10.8 V | 10.8 V | 10.8 V | 10.8 V | 10.8 V |
| Capacity | 5.6 Ah | 6.8 Ah (differs) | 6.8 Ah (differs) | 6.8 Ah (differs) | 6.8 Ah (differs) |
| Energy | 60 Wh | 73 Wh (differs) | 73 Wh (differs) | 73 Wh (differs) | 73 Wh (differs) |
| Max discharge | 10 A | 8 A (differs) | 8 A (differs) | 10 A | 10 A |
| Power | 75 W | 60 W (differs) | 60 W (differs) | 75 W | 75 W |
| Cells | 6 × 18650 | 6 × 18650 | 6 × 18650 | 6 × 18650 | 6 × 18650 |
| Configuration | 3S2P | 3S2P | 3S2P | 3S2P | 3S2P |
| Dimensions (mm) | 151.1 × 59.02 × 22.4 | 151.1 × 59.02 × 22.4 | 151.1 × 59.02 × 22.4 | 151.1 × 59.02 × 22.4 | 151 × 59 × 22.4 (differs) |
| Volume (mm³) | 199,761 | 199,761 | 199,761 | 199,761 | 199,562 (differs) |
| Weight | 349 g | 349 g | 349 g | 349 g | 349 g |
| Gravimetric density | 172 Wh per kg | 209 Wh per kg (differs) | 209 Wh per kg (differs) | 209 Wh per kg (differs) | 209 Wh per kg (differs) |
| Discharge temperature | −30 °C to +60 °C | −20 °C to +60 °C (differs) | −20 °C to +60 °C (differs) | −30 °C to +60 °C | −30 °C to +60 °C |
| SoC display | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | 5-Pin Standard Connector (differs) |
| Price, qty 1-11 | $157.97 | $153.88 | $156.54 | $161.15 | $163.81 |
This part, NF3040HD29Differs from the NF3040HD29
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
NF3040HD29 Smart Lithium-Ion Battery: The NF3040 are ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current.
The NF3040 can perform as low as -30°C (note, in cases of low temperature applications, we strongly recommend testing in your specific application).
Also, with its 10A discharge capability, the NF3040 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged.
Features:
- SMbus
- Pull tab for easy removal
- On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.
NF3040HD29 Smart Li-ion battery customization options:
- Custom label
- Custom Firmware
- Additional performance options for OEM applications N-series chargers are recommended for these batteries.
