629028

Accessory

Limited availability, quoted by sales

Request the datasheet Request a quote

Limited availability. This part is quoted by sales rather than sold from stock.

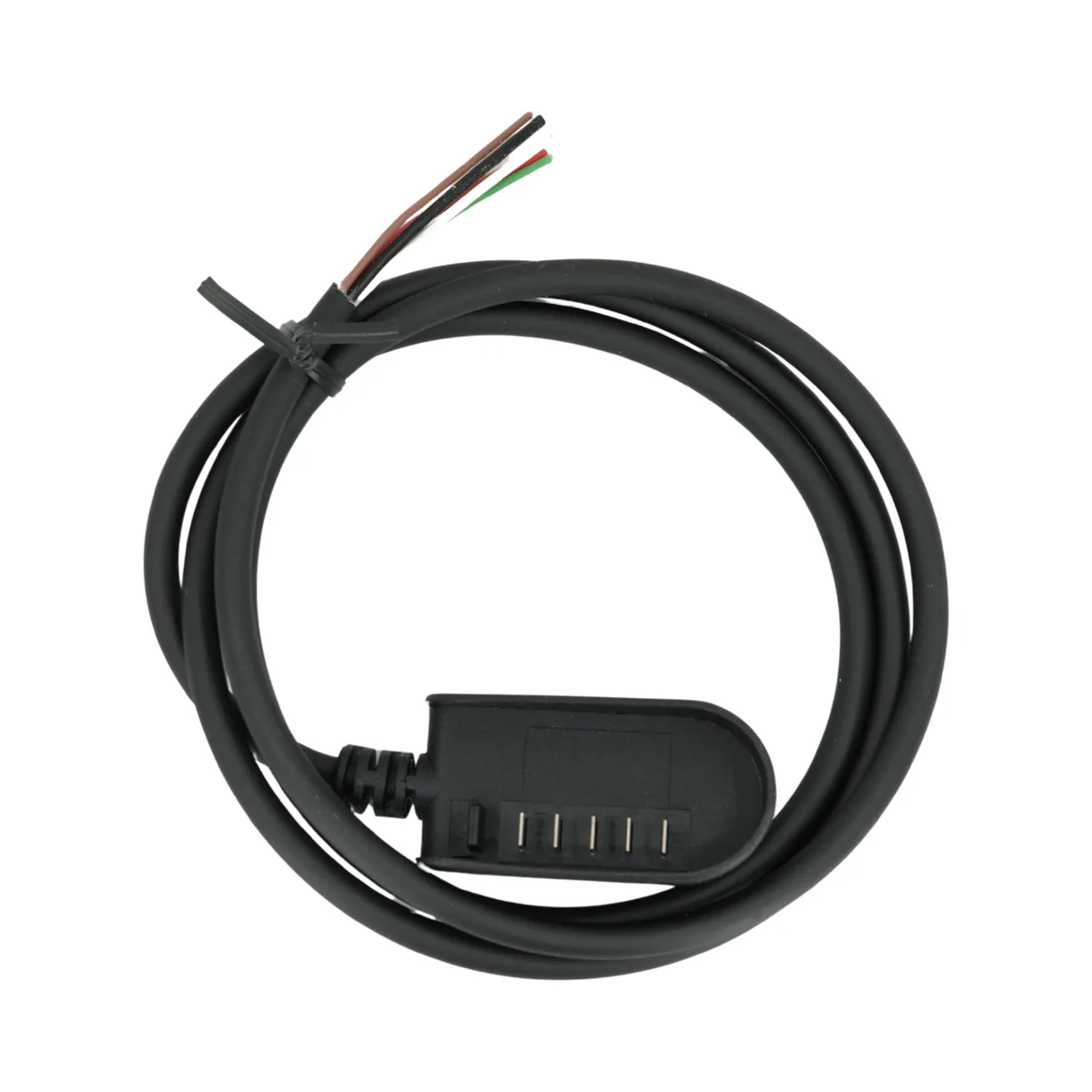

629028 product photo

Compatibility

Packs supported

PackVoltageCapacityEnergyConfigurationStatus
NC2040HD34 10.8 V 3.4 Ah 37 Wh 3S1P Active
NC2040QE34 10.8 V 3.4 Ah 37 Wh 3S1P Active
NC3040HD29 10.8 V 2.8 Ah 30 Wh 3S1P Active
NC3040QE29 10.8 V 2.8 Ah 30 Wh 3S1P Active
NC3040QE30 10.8 V 3 Ah 32 Wh 3S1P Active
ND2053ED34 3.6 V 13.6 Ah 49 Wh 1S4P Active
ND2054HD34 14.4 V 3.4 Ah 49 Wh 4S1P Active
ND2054QE34 14.4 V 3.4 Ah 49 Wh 4S1P Active
ND2057HD34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND2057QE34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND3054HD29 14.4 V 2.8 Ah 40 Wh 4S1P Active
ND3054HD30 14.4 V 3 Ah 43 Wh 4S1P Active
ND3054QE30 14.4 V 3 Ah 43 Wh 4S1P Active
NF2040HD34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NF2040QE34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NF2047HD34 7.2 V 10.2 Ah 73 Wh 2S3P Active
NF2047QE34 7.2 V 10.2 Ah 73 Wh 2S3P Active
NF3040HD29 10.8 V 5.6 Ah 60 Wh 3S2P Active
NF3040HD34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NF3040QE34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NH2054HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH2054QE34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH2057ED34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NH2057HD34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NH2057QE34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NH3054HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH3054QE34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH3057HD34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NH3057QE34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NL2054HD22 14.4 V 6.6 Ah 95 Wh 4S3P Obsolete
NL2054HD34 14.4 V 10.2 Ah 147 Wh 4S3P Active
NL2054QE34 14.4 V 10.2 Ah 147 Wh 4S3P Active
Ni2040ED29 10.8 V 8.4 Ah 91 Wh 3S3P Active
Ni2040HD29 10.8 V 8.4 Ah 91 Wh 3S3P Active
Ni2040QE29 10.8 V 8.4 Ah 91 Wh 3S3P Active
RH2044HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active

Documents

Datasheet on request. The current revision for this part is issued by engineering. Ask for it and it comes with the quote.

Need a STEP model, drawing or test data that is not listed? Contact us.

Application notes

From the current catalog

3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
