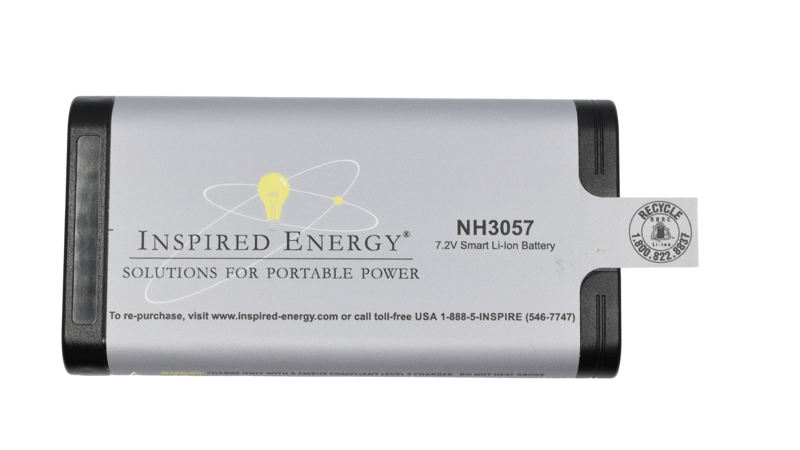

NH3057HD34
7.2 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 1.1.1
Electrical
| Voltage | 7.2 V |
|---|---|
| Capacity | 13.6 Ah |
| Energy | 98 Wh |
| Volumetric energy density | 354 Wh per litre |
| Gravimetric energy density | 225 Wh per kg |
| Maximum discharge current | 12 A |
| Power | 60 W |
| Chemistry | Lithium-ion |
| Cells | 8 × 18650 |
| Configuration | 2S4P |
Mechanical
| Dimensions (L × W × H) | 153 × 78.7 × 23 mm (6 × 3.1 × 0.9 in) |
|---|---|
| Weight | 435 g (0.96 lb) |
| Form factor | Rectangular |
| Device cavity | 23.5mm x 80mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | 5-Pin Standard Connector |
|---|---|
| State-of-charge display | Always on 5-Bar LCD |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B |
|---|---|
| Equivalent lithium content | 8 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH7070 | 2 | Yes | No | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
| CH4444 | 4 | Yes | No | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Cables
| Part | What it is |
|---|---|
| 629030 | 3', 2-Conductor coiled cable |
| 629028 | 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries. |
Accessories
Compare with its replacement and family
Volume pricing available on every part.
 NH3057HD34 This part | NH2057ZD29 Predecessor |  NH2057ED34 Same family |  NH2057HD34 Same family |  NH2057QE34 Same family | |
|---|---|---|---|---|---|
| Voltage | 7.2 V | 7.2 V | 7.2 V | 7.2 V | 7.2 V |
| Capacity | 13.6 Ah | 11.6 Ah (differs) | 13.6 Ah | 13.6 Ah | 13.6 Ah |
| Energy | 98 Wh | 83 Wh (differs) | 98 Wh | 98 Wh | 98 Wh |
| Max discharge | 12 A | 12 A | 10 A (differs) | 8 A (differs) | 10 A (differs) |
| Power | 60 W | 60 W | 50 W (differs) | 40 W (differs) | 50 W (differs) |
| Cells | 8 × 18650 | - (differs) | 8 × 18650 | 8 × 18650 | 8 × 18650 |
| Configuration | 2S4P | - (differs) | 2S4P | 2S4P | 2S4P |
| Dimensions (mm) | 153 × 78.7 × 23 | - (differs) | 153 × 78.7 × 23 | 153 × 78.7 × 23 | 153 × 78.7 × 23 |
| Volume (mm³) | 276,945 | - (differs) | 276,945 | 276,945 | 276,945 |
| Weight | 435 g | - (differs) | 435 g | 435 g | 435 g |
| Gravimetric density | 225 Wh per kg | - (differs) | 225 Wh per kg | 225 Wh per kg | 225 Wh per kg |
| Discharge temperature | −20 °C to +60 °C | - (differs) | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C |
| SoC display | Always on 5-Bar LCD | - (differs) | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD |
| Mating connector | 5-Pin Standard Connector | - (differs) | AMP P/N 5787422-1 or 5787446-1 (differs) | AMP P/N 5787422-1 or 5787446-1 (differs) | AMP P/N 5787422-1 or 5787446-1 (differs) |
| Price, qty 1-11 | $192.65 | Quote | $189.65 | $182.38 | $192.31 |
This part, NH3057HD34Differs from the NH3057HD34
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
Capable of higher discharge rates than NH2057 smart battery packs, the NH3057HD34 battery pack incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LCD display for relative SOC indication.
With its’ 12A discharge capability, the NH3057 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged.
CH-series chargers are recommended for these batteries.
NH 3057 smart liIon batteries can be customized to meet unique specifications.
Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise.
You are welcome to work directly with our technical, engineering and manufacturing staff here at our headquarters in Newberry, Florida.
We currently ship our products to over 96 countries.
Contact us now for additional information!
The NH3057HD34 has been updated as a replacement for the previous NH2057ZD29 model.
