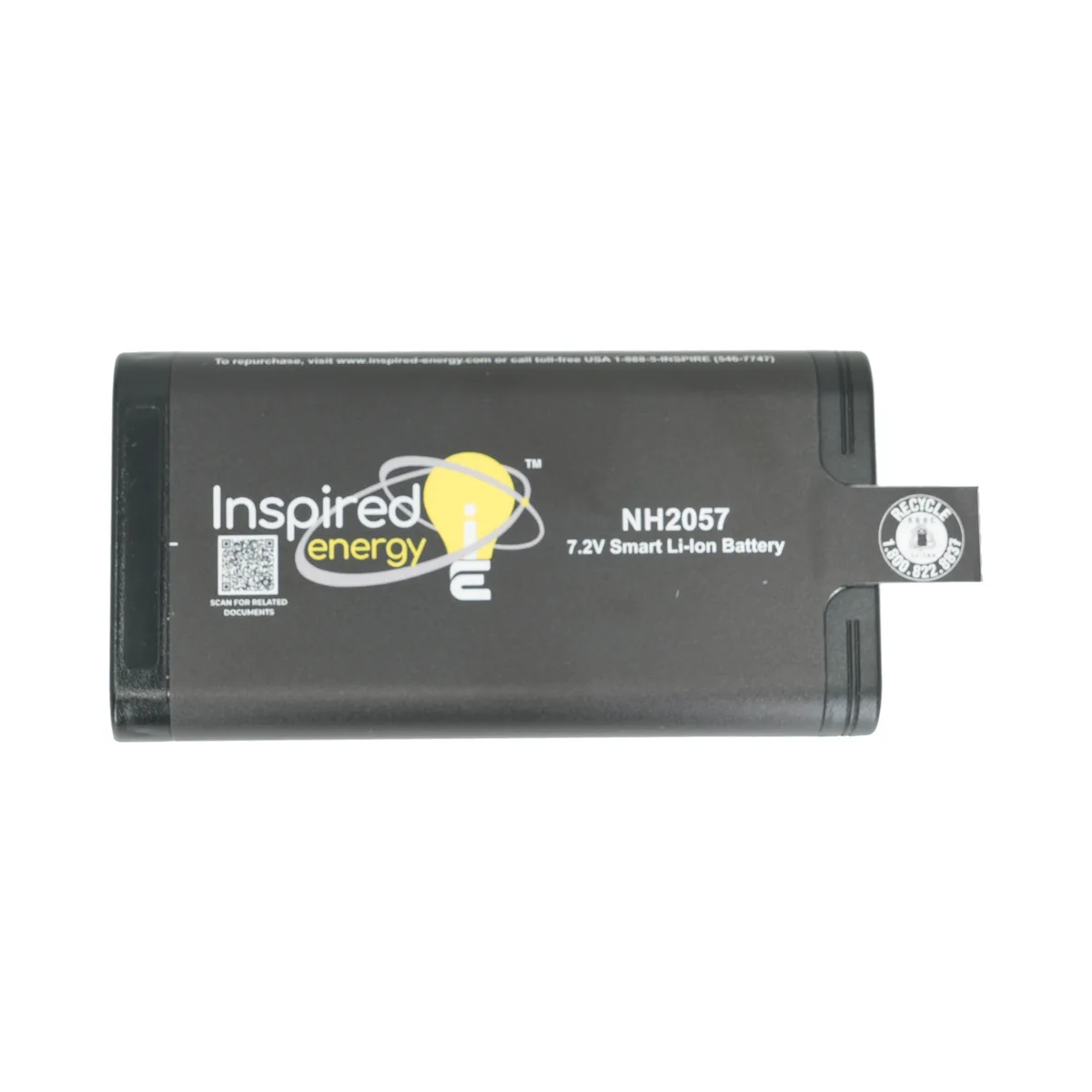

N-Series
Battery pack

NH2057HD34

7.2 V smart lithium-ion battery

Active Specs per datasheet Rev 2.0.1

Voltage: 7.2V
Capacity: 13.6Ah
Energy: 98Wh
Max discharge: 8A
Power: 40W
18650 cells: 2S4P

Specifications (nominal & typical)

Source: datasheet Rev 2.0.1

Electrical

Electrical specifications for NH2057HD34
Voltage	7.2 V
Capacity	13.6 Ah
Energy	98 Wh
Volumetric energy density	354 Wh per litre
Gravimetric energy density	225 Wh per kg
Maximum discharge current	8 A
Power	40 W
Chemistry	Lithium-ion
Cells	8 × 18650
Configuration	2S4P

Mechanical

Mechanical specifications for NH2057HD34
Dimensions (L × W × H)	153 × 78.7 × 23 mm (6 × 3.1 × 0.9 in)
Weight	435 g (0.96 lb)
Form factor	Rectangular
Device cavity	23.5mm x 80mm cross section
Ingress protection	None

Temperature limits

Temperature limits specifications for NH2057HD34
Discharge (operating)	−20 °C to +60 °C
Charge	0 °C to +45 °C
Storage	−20 °C to +60 °C

Interface

Interface specifications for NH2057HD34
Mating connector	AMP P/N 5787422-1 or 5787446-1
State-of-charge display	Always on 5-Bar LCD
Optional belt pack	MPL205X or MCL205X

Compliance and shipping

Compliance and shipping specifications for NH2057HD34
Certifications	EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B
Equivalent lithium content	8 g

Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.

Compatibility

Chargers

Chargers that support the NH2057HD34
Charger	Bays	Charge	Calibrate	Set SoC 25%	Status
CH1000	1	Yes	Yes	No	Active
CH4000	1	Yes	No	No	Active
CH5000	1	Yes	Yes	No	Active
CH4040	2	Yes	No	No	Active
CH5555	4	Yes	Yes	No	Active
CH7000	1	Yes	No	No	Active
CH1000CAL	1	Yes	Yes	No	Active
CH7100	1	Yes	No	No	Active
CH5050	2	Yes	Yes	No	Active
CH1010	2	Yes	Yes	No	Active
CH7070	2	Yes	No	No	Active
CH7171	2	Yes	No	No	Active
CH1111	4	Yes	Yes	No	Active
CH4444	4	Yes	No	No	Active
CH1111CAL	4	Yes	Yes	No	Active
CH6555	6	Yes	Yes	No	Active
CR12	12	Yes	No	No	Active

Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.

Connectors

Connectors that fit the NH2057HD34
Part	What it is
610005	Straight Connector - TE Part Number: 5787446-1
610007	90° Connector with Right-Hand Key - TE Part Number: 5787422-1
610018	90° Connector with Left-Hand Key - TE Part Number 5787428-1
BL237A	Connector Mounting Circuit Board
EB397A	Connector Board with Ideal Diode Circuit.

Cables

Cables that fit the NH2057HD34
Part	What it is
629028	3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
629030	3', 2-Conductor coiled cable

Accessories

Accessories that fit the NH2057HD34
Part	What it is
936186	Travel / dust cap for 205x range batteries
ATA004N	USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
MCL205VC Car Charger	No description published.
MCL205-2BV01	Mini Long Belt Charger for NH2054 and NH2057 battery packs.
MCL205-2BV02	Mini Long Belt Charger for NH2054 and NH2057 battery packs.
MCL205-2D1201	Mini Long Belt Charger for NH2054 and NH2057 battery packs.
MCL205-5BV01	Mini Long Belt Charger for NH2054 and NH2057 battery packs.

Compare with its family

Volume pricing available on every part.

NH2057HD34 compared with related parts
	NH2057HD34 This part	NH2057ED34 Same family	NH2057QE34 Same family	ND2057HD34 Same family	ND2057QE34 Same family
Voltage	7.2 V	7.2 V	7.2 V	7.2 V	7.2 V
Capacity	13.6 Ah	13.6 Ah	13.6 Ah	6.8 Ah (differs)	6.8 Ah (differs)
Energy	98 Wh	98 Wh	98 Wh	49 Wh (differs)	49 Wh (differs)
Max discharge	8 A	10 A (differs)	10 A (differs)	8 A	8 A
Power	40 W	50 W (differs)	50 W (differs)	40 W	40 W
Cells	8 × 18650	8 × 18650	8 × 18650	4 × 18650 (differs)	4 × 18650 (differs)
Configuration	2S4P	2S4P	2S4P	2S2P (differs)	2S2P (differs)
Dimensions (mm)	153 × 78.7 × 23	153 × 78.7 × 23	153 × 78.7 × 23	86.4 × 78.7 × 23.02 (differs)	86.4 × 78.7 × 23.02 (differs)
Volume (mm³)	276,945	276,945	276,945	156,529 (differs)	156,529 (differs)
Weight	435 g	435 g	435 g	240 g (differs)	240 g (differs)
Gravimetric density	225 Wh per kg	225 Wh per kg	225 Wh per kg	204 Wh per kg (differs)	204 Wh per kg (differs)
Discharge temperature	−20 °C to +60 °C	−20 °C to +60 °C	−20 °C to +60 °C	−20 °C to +60 °C	−20 °C to +60 °C
SoC display	Always on 5-Bar LCD	Always on 5-Bar LCD	Always on 5-Bar LCD	Always on 5-Bar LCD	Always on 5-Bar LCD
Mating connector	AMP P/N 5787422-1 or 5787446-1	AMP P/N 5787422-1 or 5787446-1	AMP P/N 5787422-1 or 5787446-1	AMP P/N 5787422-1 or 5787446-1	AMP P/N 5787422-1 or 5787446-1
Price, qty 1-11	$182.38	$189.65	$192.31	$120.58	$123.24

This part, NH2057HD34Differs from the NH2057HD34

All N-Series parts in the finder

Documents

Need a STEP model, drawing or test data that is not listed? Contact us.

Application notes

From the current catalog

NH2057HD34 Smart Lithium-Ion Battery: The NH2057HD34 is ideal for low temperature applications, as the low internal impedance enables the cells to deliver good capacity and discharge current.

The 2057 battery pack can perform as low as -20°C (note, in low temperature applications, we recommend testing the device at temperature to validate performance).

Also, with its’ 8A discharge capability, the NH2057 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged.

Features:

SMbus
Pull tab for easy removal
On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.

NH2057HD34 Smart Li-ion battery customization options:

Custom label
Custom Firmware

Consider the NH2057QE34 smart battery Looking for something with a higher discharge rate and lower temperature option?

We recommend the NH3057HD34 smart battery Need something with higher voltage?

Check out our NH2054HD34 smart batteries The NH2057HD34 is our newest model, designed to outperform the previous NH2057A24, NH2057HD24, NH2057HD29, & NH2057HD31 models.

Custom options

Make it yours.

The NH2057HD34 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.

Explore custom options

Custom label
Your brand or OEM labeling, printed in-house on our label line.
Custom firmware
Battery-management parameters tuned to your device's performance requirements.
Custom connector
Proprietary or standard connector options to match your device's interface.
Custom cell configuration
A different cell count, array or chemistry to hit your voltage and runtime targets.
Custom enclosure
New tooling and injection molding for a form factor built around your device.
