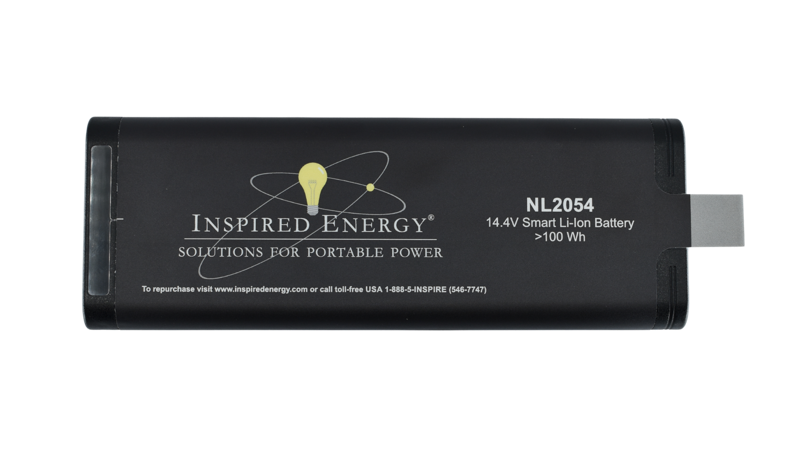

NL2054HD34
14.4 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 1.0.2
Electrical
| Voltage | 14.4 V |
|---|---|
| Capacity | 10.2 Ah |
| Energy | 147 Wh |
| Volumetric energy density | 378 Wh per litre |
| Gravimetric energy density | 227 Wh per kg |
| Maximum discharge current | 8 A |
| Power | 80 W |
| Chemistry | Lithium-ion |
| Cells | 12 × 18650 |
| Configuration | 4S3P |
Mechanical
| Dimensions (L × W × H) | 215.9 × 78.7 × 22.86 mm (8.5 × 3.1 × 0.9 in) |
|---|---|
| Weight | 647 g (1.43 lb) |
| Form factor | Rectangular |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
|---|
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B |
|---|---|
| Equivalent lithium content | 12 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH7070 | 2 | Yes | No | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
| CH4444 | 4 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Cables
| Part | What it is |
|---|---|
| 629028 | 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries. |
| 629030 | 3', 2-Conductor coiled cable |
Accessories
Compare with its family
Volume pricing available on every part.
 NL2054HD34 This part |  NL2054QE34 Same family | |
|---|---|---|
| Voltage | 14.4 V | 14.4 V |
| Capacity | 10.2 Ah | 10.2 Ah |
| Energy | 147 Wh | 147 Wh |
| Max discharge | 8 A | 8 A |
| Power | 80 W | 80 W |
| Cells | 12 × 18650 | 12 × 18650 |
| Configuration | 4S3P | 4S3P |
| Dimensions (mm) | 215.9 × 78.7 × 22.86 | 215.9 × 78.7 × 22.86 |
| Volume (mm³) | 388,422 | 388,422 |
| Weight | 647 g | 647 g |
| Gravimetric density | 227 Wh per kg | 227 Wh per kg |
| Discharge temperature | −20 °C to +60 °C | −20 °C to +60 °C |
| SoC display | - | Always on 5-Bar LCD (differs) |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 |
| Price, qty 1-11 | $236.73 | $239.39 |
