NF2047HD34
7.2 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 2.0
Electrical
| Voltage | 7.2 V |
|---|---|
| Capacity | 10.2 Ah |
| Energy | 73 Wh |
| Volumetric energy density | 365 Wh per litre |
| Gravimetric energy density | 209 Wh per kg |
| Maximum discharge current | 10 A |
| Power | 50 W |
| Chemistry | Lithium-ion |
| Cells | 6 × 18650 |
| Configuration | 2S3P |
Mechanical
| Dimensions (L × W × H) | 151.1 × 59.02 × 22.4 mm (5.9 × 2.4 × 0.9 in) |
|---|---|
| Weight | 349 g (0.77 lb) |
| Form factor | Rectangular |
| Device cavity | 23.5mm x 60mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
|---|---|
| State-of-charge display | Always on 5-Bar LCD |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B |
|---|---|
| Equivalent lithium content | 6 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH7070 | 2 | Yes | No | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
| CH4444 | 4 | Yes | No | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
| CR12 | 12 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Cables
| Part | What it is |
|---|---|
| 629028 | 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries. |
| 629030 | 3', 2-Conductor coiled cable |
Accessories
Compare with its family
Volume pricing available on every part.
 NF2047HD34 This part |  NF2047QE34 Same family | NF2047HD29 Same family | |
|---|---|---|---|
| Voltage | 7.2 V | 7.2 V | 7.2 V |
| Capacity | 10.2 Ah | 10.2 Ah | 8.7 Ah (differs) |
| Energy | 73 Wh | 73 Wh | 62.6 Wh (differs) |
| Max discharge | 10 A | 10 A | - (differs) |
| Power | 50 W | 50 W | - (differs) |
| Cells | 6 × 18650 | 6 × 18650 | 6 × 18650 |
| Configuration | 2S3P | 2S3P | 2S3P |
| Dimensions (mm) | 151.1 × 59.02 × 22.4 | 151.1 × 59.02 × 22.4 | 150.24 × 58.65 × 21.89 (differs) |
| Volume (mm³) | 199,761 | 199,761 | 192,885 (differs) |
| Weight | 349 g | 349 g | 349 g |
| Gravimetric density | 209 Wh per kg | 209 Wh per kg | 179 Wh per kg (differs) |
| Discharge temperature | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C |
| SoC display | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 |
| Price, qty 1-11 | $153.88 | $156.54 | Quote |
This part, NF2047HD34Differs from the NF2047HD34
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

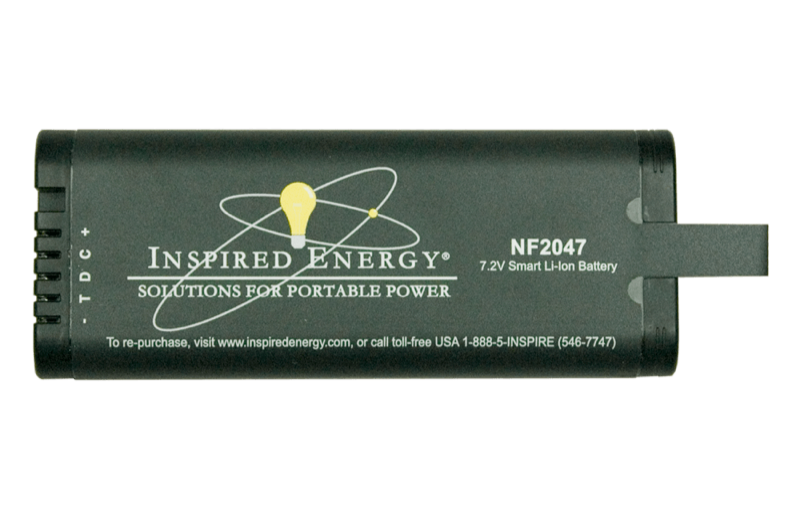

NF2047HD34 Smart Lithium-Ion Battery: The NF2047HD34 is ideal for low temperature applications, as the low internal impedance enables the cells to deliver good capacity and discharge current.
The 2047 battery pack can perform as low as -20°C (note, in low temperature applications, we recommend testing the device at temperature to validate performance).
Features:
- SMbus
- Pull tab for easy removal
- On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.
NF2047HD34 Smart Li-ion battery customization options:
- Custom label
- Custom Firmware
- Additional performance options for OEM applications N-series chargers are recommended for these batteries.
Consider the NF2047QE34 smart battery Looking for something with a higher voltage?
We recommend the NF2040HD34 smart battery The NF2047HD34 is our newest model, designed to outperform the previous NF2047HD29 & NF2047HD31 models.
