- N-Series
- Battery pack
- Obsolete

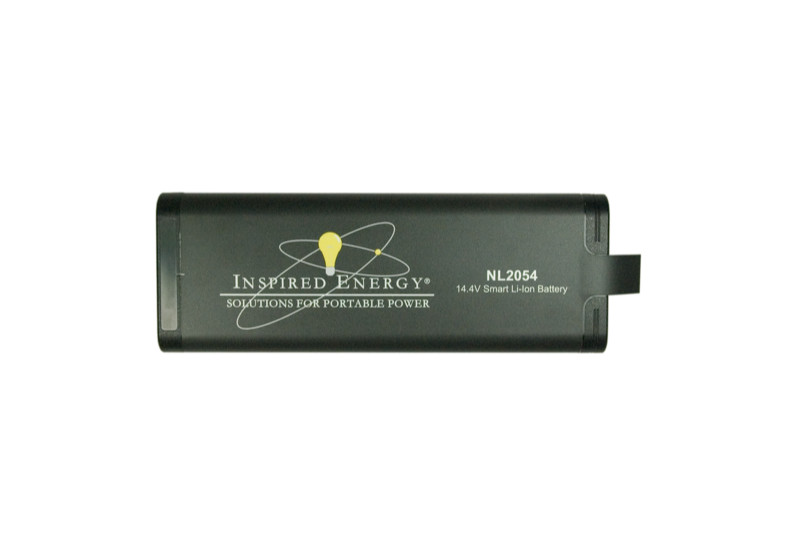

NL2054HD22
14.4 V smart lithium-ion battery
No longer manufactured. Contact us about the current equivalent.
Specifications (nominal & typical)
Source: datasheet Rev 4.2
Electrical
| Voltage | 14.4 V |
|---|---|
| Capacity | 6.6 Ah |
| Energy | 95 Wh |
| Volumetric energy density | 245 Wh per litre |
| Gravimetric energy density | 147 Wh per kg |
| Maximum discharge current | 8 A |
| Power | 80 W |
| Chemistry | Lithium-ion |
| Cells | 12 × 18650 |
| Configuration | 4S3P |
Mechanical
| Dimensions (L × W × H) | 215.9 × 78.7 × 22.86 mm (8.5 × 3.1 × 0.9 in) |
|---|---|
| Weight | 647 g (1.43 lb) |
| Form factor | Rectangular |
| Device cavity | 23.5mm x 80mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
|---|---|
| State-of-charge display | Always on 5-Bar LCD |
| Optional belt pack | MP20X or BPXX or BC2BVX |
Compliance and shipping
| Certifications | CE, EMC Directive, Battery Directive, RoHS2, REACH, WEEE, UKCA, UN 38.3, FCC Part 15 Class B |
|---|---|
| Equivalent lithium content | 8 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| Embedded Charger Boards | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH7070 | 2 | Yes | No | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH4444 | 4 | Yes | No | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
| CR12 | 12 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Cables
| Part | What it is |
|---|---|
| 629030 | 3', 2-Conductor coiled cable |
| 629028 | 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries. |
Accessories
Compare with its family
Volume pricing available on every part.
 NL2054HD22 This part |  RH2054HD34 Same family |  NL2054QE34 Same family | |
|---|---|---|---|
| Voltage | 14.4 V | 14.4 V | 14.4 V |
| Capacity | 6.6 Ah | 6.8 Ah (differs) | 10.2 Ah (differs) |
| Energy | 95 Wh | 98 Wh (differs) | 147 Wh (differs) |
| Max discharge | 8 A | 8 A | 8 A |
| Power | 80 W | 80 W | 80 W |
| Cells | 12 × 18650 | 8 × 18650 (differs) | 12 × 18650 |
| Configuration | 4S3P | 4S2P (differs) | 4S3P |
| Dimensions (mm) | 215.9 × 78.7 × 22.86 | 215.9 × 78.7 × 22.86 | 215.9 × 78.7 × 22.86 |
| Volume (mm³) | 388,422 | 388,422 | 388,422 |
| Weight | 647 g | 647 g | 647 g |
| Gravimetric density | 147 Wh per kg | 151 Wh per kg (differs) | 227 Wh per kg (differs) |
| Discharge temperature | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C |
| SoC display | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 |
| Price, qty 1-11 | Quote | $182.38 | $239.39 |
This part, NL2054HD22Differs from the NL2054HD22
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
We recommend the RH2054 for use, over previous NL2054 models.
At 98Wh the latest 8-cell NH2054 or NH2034 models have a greater stored energy to this 12-cell model in a package which is 30% smaller and lighter.
We recommend using these models for new designs.
The NL2054 is capable for low temperature applications as it can perform as low as -20°C. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application).
Also, with its 8A discharge capability, the NL2054 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged.
These smart Li-ion batteries can be customized to meet unique specifications.
Custom label, custom firmware and some performance options are available.
Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise.
To place an order or for additional quantity pricing, please contact us.
Custom options
Make it yours.
The NL2054HD22 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
Explore custom optionsCustom label
Your brand or OEM labeling, printed in-house on our label line.
Custom firmware
Battery-management parameters tuned to your device's performance requirements.
Custom connector
Proprietary or standard connector options to match your device's interface.
Custom cell configuration
A different cell count, array or chemistry to hit your voltage and runtime targets.
Custom enclosure
New tooling and injection molding for a form factor built around your device.
