- N-Series
- Battery pack

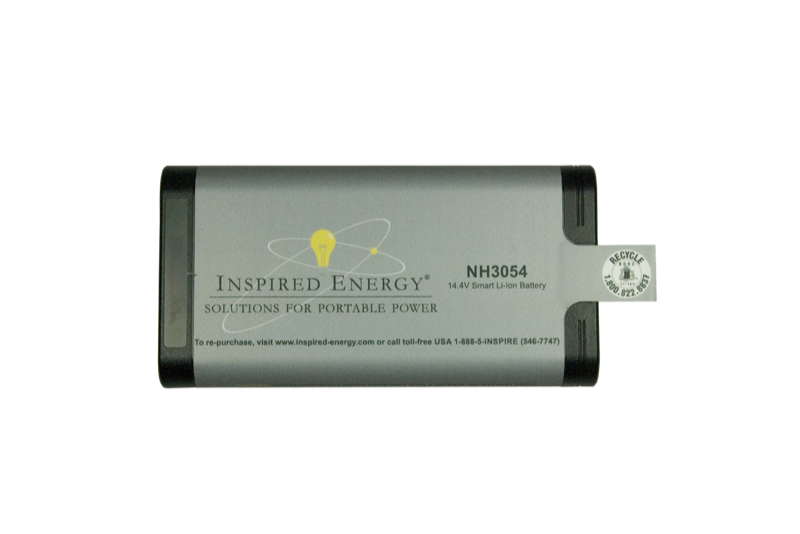

NH3054HD34
14.4 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 2.0
Electrical
| Voltage | 14.4 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 98 Wh |
| Volumetric energy density | 354 Wh per litre |
| Gravimetric energy density | 225 Wh per kg |
| Maximum discharge current | 10 A |
| Power | 100 W |
| Chemistry | Lithium-ion |
| Cells | 8 × 18650 |
| Configuration | 4S2P |
Mechanical
| Dimensions (L × W × H) | 153 × 78.7 × 23 mm (6 × 3.1 × 0.9 in) |
|---|---|
| Weight | 435 g (0.96 lb) |
| Form factor | Rectangular |
| Device cavity | 23.5mm x 80mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
|---|---|
| State-of-charge display | Always on 5-Bar LCD |
| Optional belt pack | MPL205X or MCL205X |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS2, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B |
|---|---|
| Equivalent lithium content | 8 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH4444 | 4 | Yes | No | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH7070 | 2 | Yes | No | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
| CR12 | 12 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Cables
| Part | What it is |
|---|---|
| 629030 | 3', 2-Conductor coiled cable |
| 629028 | 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries. |
Accessories
| Part | What it is |
|---|---|
| 936186 | Travel / dust cap for 205x range batteries |
| ATA004N | USB-to-SMBus smart battery interface with “Y” USB/Battery cable. |
| MCL205VC Car Charger | No description published. |
Compare with its family
Volume pricing available on every part.
 NH3054HD34 This part |  ND2054HD34 Same family |  ND2054QE34 Same family |  ND3054HD29 Same family |  NH2054HD34 Same family | |
|---|---|---|---|---|---|
| Voltage | 14.4 V | 14.4 V | 14.4 V | 14.4 V | 14.4 V |
| Capacity | 6.8 Ah | 3.4 Ah (differs) | 3.4 Ah (differs) | 2.8 Ah (differs) | 6.8 Ah |
| Energy | 98 Wh | 49 Wh (differs) | 49 Wh (differs) | 40 Wh (differs) | 98 Wh |
| Max discharge | 10 A | 4 A (differs) | 4 A (differs) | 10 A | 8 A (differs) |
| Power | 100 W | 40 W (differs) | 40 W (differs) | 100 W | 80 W (differs) |
| Cells | 8 × 18650 | 4 × 18650 (differs) | 4 × 18650 (differs) | 4 × 18650 (differs) | 8 × 18650 |
| Configuration | 4S2P | 4S1P (differs) | 4S1P (differs) | 4S1P (differs) | 4S2P |
| Dimensions (mm) | 153 × 78.7 × 23 | 86.4 × 78.7 × 23.02 (differs) | 86.4 × 78.7 × 23.02 (differs) | 86.4 × 78.7 × 23.02 (differs) | 153 × 78.7 × 23 |
| Volume (mm³) | 276,945 | 156,529 (differs) | 156,529 (differs) | 156,529 (differs) | 276,945 |
| Weight | 435 g | 240 g (differs) | 240 g (differs) | 240 g (differs) | 435 g |
| Gravimetric density | 225 Wh per kg | 204 Wh per kg (differs) | 204 Wh per kg (differs) | 167 Wh per kg (differs) | 225 Wh per kg |
| Discharge temperature | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C | −30 °C to +60 °C (differs) | −20 °C to +60 °C |
| SoC display | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 |
| Price, qty 1-11 | $189.65 | $120.58 | $123.24 | $128.73 | $182.38 |
This part, NH3054HD34Differs from the NH3054HD34
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
NH3054HD34 Smart Lithium-Ion Battery: The NH3054 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current.
The NH3054 can perform as low as -10°C (note, in low temperature applications, we recommend testing the device at temperature to validate performance).
Also, with its 10A discharge capability, the NH3054 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged.
Features:
- SMbus
- Pull tab for easy removal
- On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.
NH3054HD34 Smart Li-ion battery customization options:
- Custom label
- Custom Firmware
Consider the NH3054QE34 smart battery Looking for something with a higher discharge rate and lower temperature option?
We recommend the NH3057QE34 smart battery The NH3054HD34 is our newest model, designed to outperform the previous NH3054HD29 and NH3054HD31 models.
Custom options
Make it yours.
The NH3054HD34 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
Explore custom optionsCustom label
Your brand or OEM labeling, printed in-house on our label line.
Custom firmware
Battery-management parameters tuned to your device's performance requirements.
Custom connector
Proprietary or standard connector options to match your device's interface.
Custom cell configuration
A different cell count, array or chemistry to hit your voltage and runtime targets.
Custom enclosure
New tooling and injection molding for a form factor built around your device.
